Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
NSN
Número de acciones nacionales:
TXT
Descripción:

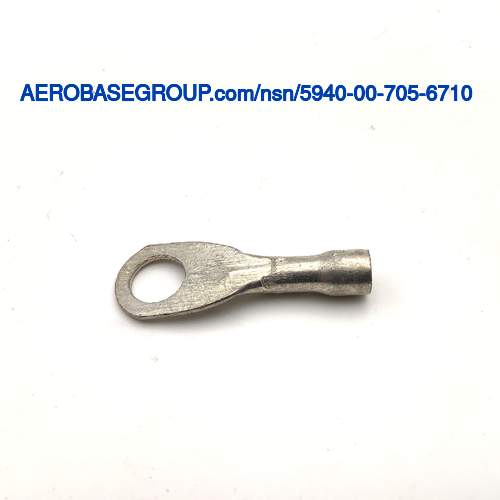

Lug Terminal
Código de nombre del artículo:
00746
MRC:
A measurement of the longest dimension of an item,in distinction from width.AAJU
Overall Length:
1.560 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.AAJV
Overall Width:
0.560 inches
MRC:
A measurement of the smallest dimension of the material stock for stamped or formed items,in distinction from length or width.AAJX
Material Thickness:
0.040 inches
MRC:
The maximum size of the conductor the item is designed to accommodate.AAKV
Maximum Conductor Size Accommodated:
14 awg
MRC:
The feature consisting of sleeves,covering,caps,mounting bushings and the like,used to electrically insulate an item.AALV
Electrical Insulation Feature:
Uninsulated
MRC:
The style designation indicating the configuration that most nearly corresponds to the mounting method of the item.AALX
Mounting Method Style:
Ring
MRC:
The length of a straight line which passes through the center of a mounting hole,and terminates at the circumference.AAMA
Mounting Hole Diameter:
0.320 inches
Mounting Tongue Width:
0.560 inches
MRC:
A measurement of the smallest dimension of the mounting facility,in distinction from length or width.AAMK
Mounting Facility Thickness:
0.040 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the basic appearance of the item.AGTA
Basic Shape Style:
Crimp
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Cable water seal
MRC:
Indicates the type of connector or conductor accommodation included on the item.CSFJ
Conductor Accommodation Type:
Recessed barrel single end
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
WW-T-799 federal specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium conductor accommodation second layer
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium mounting facility single layer or tin mounting facility single layer
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Tin conductor accommodation first layer
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 2, cl 2 federal specification 1ST treatment response mounting facility single layer
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 2, cl 2 federal specification single treatment response conductor accommodation second layer
