Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
t642-800
NSN
Número de acciones nacionales:
TXT
Descripción:

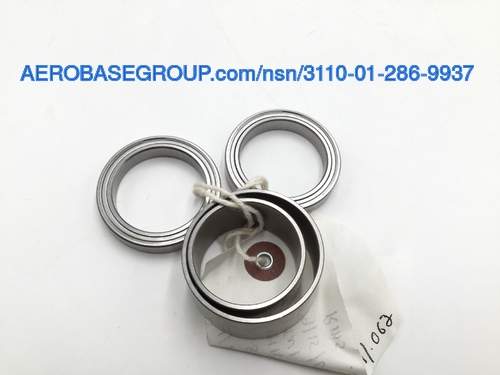

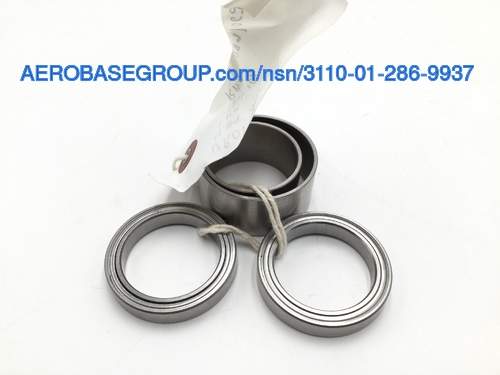

Duplex Ball Bearing
Código de nombre del artículo:
30213
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 1.3700 inches and 1.3750 inches
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
1.3125 inches
MRC:
The overall length of a straight line which passes through the center of an item,and terminates at the outside circumference.ADGA
Overall Outside Diameter:
1.7500 inches
MRC:
The element,compound,or mixture with which the item is lubricated.ADZG
Lubrication Material:
Grease
MRC:
The standard tolerance designation indicating the manufactured limitations of the item as established by the various specifications and standards.CTFZ
Standard Tolerance Designation:
Abec no 5T
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic phenolic retainer
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 440C alignment ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 440C ball
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 440C inner ring
