Número de pieza SYM400.2

Terminal Box
Descripción

Terminalbox

Disponibilidad de stock  Códigos de condición del producto

Número de pieza sym400.2 está en stock en las siguientes cantidades y condiciones.

  • NS: 1
  • SV: 1
  • NE: 8

Nota: La disponibilidad de este artículo se actualizó por última vez 03/31/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

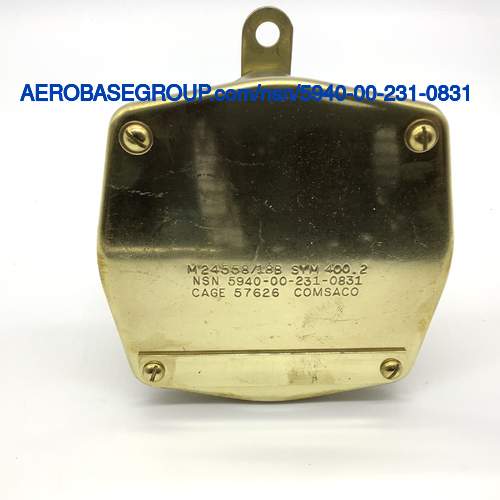

Imagen del número de acciones nacionales  5940-00-231-0831

El precio histórico de este producto está entre 109.7 and 148.095 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
sym400.2
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
002310831
NSN
Número de acciones nacionales:
5940-00-231-0831 5940002310831
TXT
Descripción:
Terminal Box
INC
INC
Código de nombre del artículo:
00452
MRC:
An overall measurement between specified points of an item,in distinction from height.ABFY
Overall Depth:
3.500 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
5.750 inches
MRC:
A measurement of the amount of turning necessary to bring one half into coincidence with another,expressed in degrees.ABVJ
Angle Between Centerlines Of Mounting Holes In Deg:
120.0
MRC:
A designation of the standard mounting facility arrangement provided.AESL
Standard Mounting Pattern Designator:
Bolt circle
MRC:
The length of a straight line which passes through the center of a mounting bolt circle,and terminates at the circumference.AFFL
Mounting Bolt Circle Diameter:
5.625 inches
MRC:
The means of attaching the item.AXGY
Mounting Method:
Bracket with hole
MRC:
The number of grounding foot terminals provided.BGJJ
Err Default:
Err default
MRC:
The number of grounding foot terminals provided.BGJJ
Grounding Foot Terminal Quantity:
2
MRC:
The number of grounding link terminals provided.BGJK
Err Default:
Err default
MRC:
The number of grounding link terminals provided.BGJK
Grounding Link Terminal Quantity:
2
MRC:
Indicates the type and number of terminals for providing electrical connection.CCFF
Terminal Type And Quantity:
4 threaded stud
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Round surface mounting
