Número de pieza:
st4m200-6
Información de la pieza
80 pct full of specified lubricant 4 lube holes 90 degrees apart and groove in inner rings
NSN
Número de acciones nacionales:
TXT
Descripción:

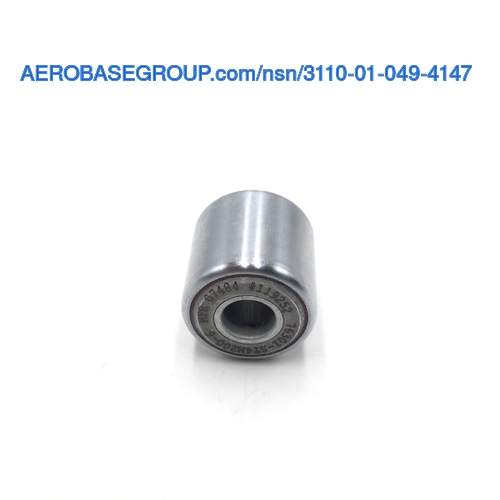

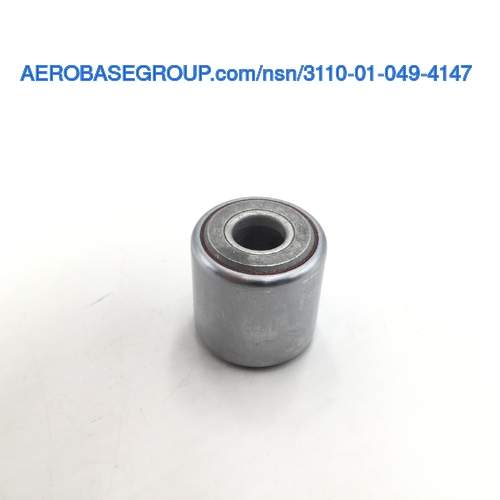

Needle Roller Bearing
Código de nombre del artículo:
00051
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.3745 inches and 0.3750 inches
MRC:
The overall length of a straight line which passes through the center of an item,and terminates at the outside circumference.ADGA
Overall Outside Diameter:
Between 0.9990 inches and 1.0000 inches
MRC:
The element,compound,or mixture with which the item is lubricated.ADZG
Lubrication Material:
Grease
Outer Ring Width:
Between 0.9350 inches and 0.9400 inches
Inner Ring Width:
Between 0.9900 inches and 1.0000 inches
MRC:
An additional finishing process by which the surface of an item is altered in respect to polishing,grinding,and the like.AGYE
Surface Finish:
Ground
MRC:
The number of seals included on the item.AGYJ
Seal Quantity:
2
MRC:
Indicates the type of seal provided with the bearing.AGYW
Bearing Seal Type:
Contact
MRC:
Indicates the type of alignment utilized whereby the item will adjust axially for misalignment.AGZA
Alignment Type:
Rigid
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the lubrication material.LMDC
Lubrication Material Specification:
MIL-G-81322 military specification single material response
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic acetal seal
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyamide thrust retainer
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp E52100 inner ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp E52100 outer ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp E52100 roller
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp E52100 washer or steel comp 1074 washer
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
AMS6440 assn standard single material response inner ring or AMS6441 assn standard single material response inner ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
AMS6440 assn standard single material response outer ring or AMS6441 assn standard single material response outer ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
AMS6440 assn standard single material response roller or AMS6441 assn standard single material response roller
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
MS6440 federal specification single material response washer or aisi assn standard 2ND material response washer
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium washer
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Chromium outer ring
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium inner ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-C-320 federal specification single treatment response outer ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 1, cl 2 federal specification single treatment response inner ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 1, cl 2 federal specification single treatment response washer
