Número de pieza:
sr25gsda
NSN
Número de acciones nacionales:
TXT
Descripción:

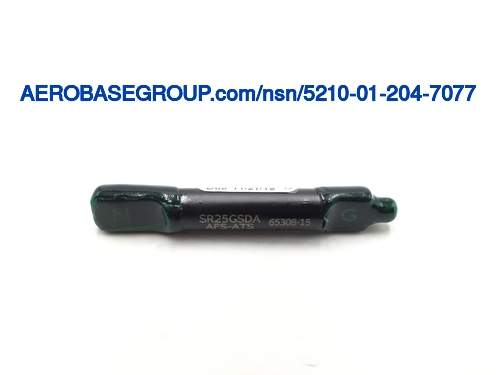

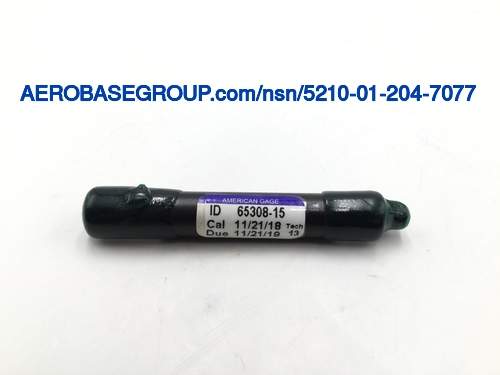

Screw Thread Insert Gage
Código de nombre del artículo:
77777
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Rosan no SR250, SR258, SR250L and SR258L screw thread inserts
MRC:
Describes the capabilities,intended use,and/or purpose for which the item is provided.FTLD
Functional Description:
Used to check swage and depth of insert after swaging
MRC:
A recording of the physical,functional,and performance characteristics for an item of supply.TEXT
General Description:
Steel alloy black oxide MIL-C-13924, cl 1 plus oil per MIL-C-16173, gr 3; o/a lg 2.970-3.030 in cutaway onboth end 0.750 in Lg largest od 0.438 in first end has single projection 0.0345-0.0380 in Lg 0.234 in Hg 0.3090-0.3115 in Dia second end projection stepped first step 0.204 in Od second step 0.2780-0.2805 in Dia 0.219 in Hg
