Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
sb5ws0.0801lbspool
NSN
Número de acciones nacionales:
TXT
Descripción:

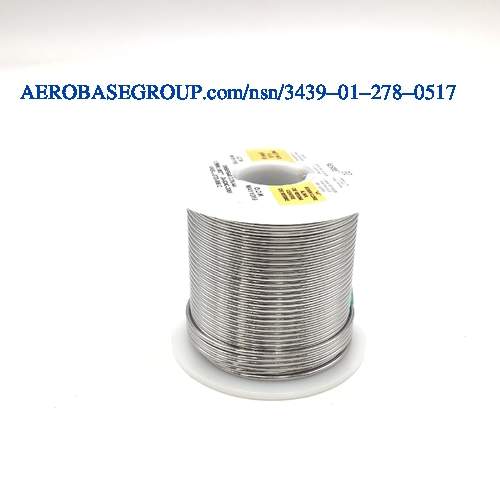

Tin Alloy Solder
Código de nombre del artículo:
04987
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the circumference.ABMZ
Diameter:
0.080 inches
MRC:
The recognized shape,configuration,structure,or mold of a substance,natural or refined,that most nearly corresponds to the appearance of the item.AGXW
Physical Form:
Wire
MRC:
The element(s) used in the fabrication of the item,expressed in percent.ARRX
Chemical Composition Percentage:
Tin 94.0; lead 0.2; antimony 4.0 to 6.0; copper 0.08; iron 0.08; zinc 0.03; aluminum 0.03; arsenic 0.05; cadmium 0.03
MRC:
The amount of the item contained within each unit package.ARSD
Content Within Each Unit Package:
1.0 lb
MRC:
Indicates the type of core used in the wire.ARSG
Wire Core Type:
Solid
MRC:
Characteristics or qualities of an item,not covered in any other requirement,which are considered essential information for one or more functions excluding nsn assignment.SUPP
Supplementary Features:
Elec/elect Conn to 240.0 degrees c temp and cu tu jt refrig equip
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81348-QQ-S-571 government specification
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
SB5 composition and w form and s type and 0.080IN. Size and 1.0LB weight
