Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
pt-cpc6303-12056
Desmilitarización:
Yes - DEMIL/MLI
Información de la pieza

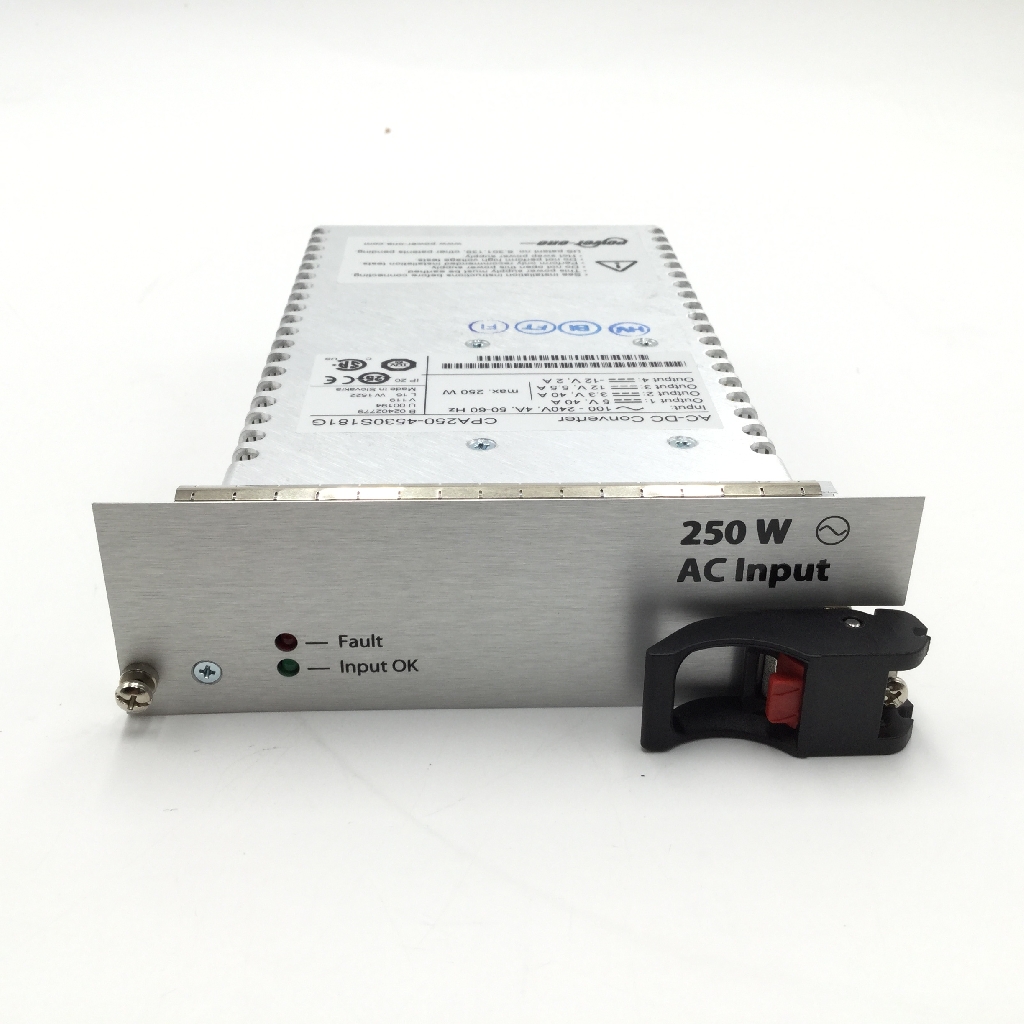

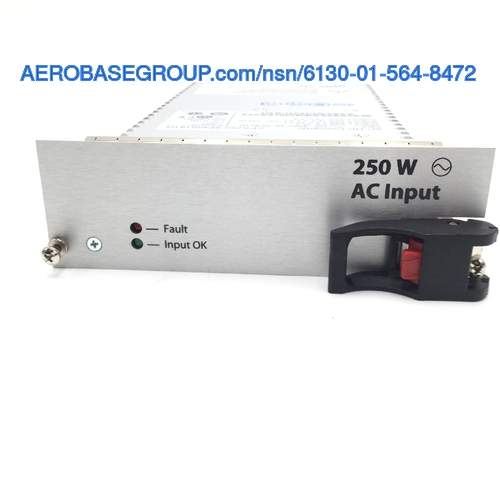

250-WATT hot-swap ac power supply
NSN
Número de acciones nacionales:
TXT
Descripción:
Power Supply
Código de nombre del artículo:
00740
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
6.671 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
5.067 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
1.600 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
MK2 open architecture mams ssds OL-72 (V)2/S computer grp tact (cvn 68) cab a OL-724(V)3/S tact (cvn 68) cab a
MRC:
The input value/s/,or range of values,for which the item is rated.APNX
Input Voltage Rating:
264.0 ac pounds per hour wet 2ND operating power rqmt
MRC:
The input value/s/,or range of values,for which the item is rated.APNX
Input Voltage Rating:
90.0 ac pounds per hour wet 1ST operating power rqmt
MRC:
The output value/s/,or range of values,for which the item is rated.APPA
Output Voltage Rating:
3.3 dc volts 1ST power output
MRC:
The output value/s/,or range of values,for which the item is rated.APPA
Output Voltage Rating:
12.0 dc volts 3RD power output
MRC:
The output value/s/,or range of values,for which the item is rated.APPA
Output Voltage Rating:
5.0 dc volts 2ND power output
MRC:
The number of complete cyclic changes,per unit of time,for which the input is rated.APTQ
Input Frequency Rating:
47.0 hertz 1ST operating power rqmt
MRC:
The number of complete cyclic changes,per unit of time,for which the input is rated.APTQ
Input Frequency Rating:
63.0 hertz 2ND operating power rqmt
MRC:
The output current rating at which the item is designed to operate.CWGH
Output Current Rating:
40.0 dc amperes 1ST power output
MRC:
The output current rating at which the item is designed to operate.CWGH
Output Current Rating:
40.0 dc amperes 2ND power output
MRC:
The output current rating at which the item is designed to operate.CWGH
Output Current Rating:
5.5 dc amperes 3RD power output
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Fourth dc outlet: -12 v 1.5A; four outputs are capable of providing total combined power of 250W; output overvoltage, output overcurrent, overtemperature protection status leds
