Número de pieza PF101-4-2

Pipe Bushing
Disponibilidad de stock  Códigos de condición del producto

Número de pieza pf101-4-2 está en stock en las siguientes cantidades y condiciones.

  • AR: 1
  • NS: 166
  • NE: 58

Nota: La disponibilidad de este artículo se actualizó por última vez 10/21/2020 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

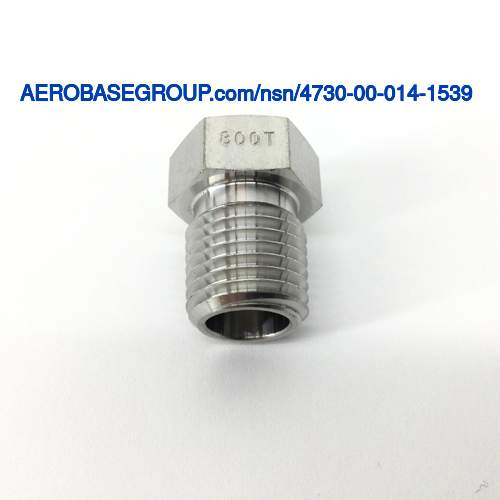

Imagen del número de acciones nacionales 4730-00-014-1539

El precio histórico de este producto está entre 0.68 and 0.918 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
pf101-4-2
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
10 EA
NIIN:
000141539
NSN
Número de acciones nacionales:
4730-00-014-1539 4730000141539
TXT
Descripción:
Pipe Bushing
INC
INC
Código de nombre del artículo:
03779
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
3990-01-444-5196 cement mixer
MRC:
Designates the thread diameter and number of threads per measurement scale of an externally threaded item.AWMG
External Thread Size:
1/4-18
MRC:
Designates the thread diameter and number of threads per measurement scale of an internally threaded item.AWMH
Internal Thread Size:
1/8-27
MRC:
A designation distinguishing one group of external screw thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.CGMD
External Screw Thread Series Designator:
Nptf
MRC:
The direction of the external thread when viewed axially.CGMF
External Thread Direction:
Right-hand
MRC:
A designation distinguishing one group of internal screw thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.CGMH
Internal Screw Thread Series Designator:
Nptf
MRC:
The direction of the internal thread when viewed axially.CGMJ
Internal Thread Direction:
Right-hand
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Steel corrosion resisting
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Phosphate
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
N1 outside hexagon or octagon (partial or full thread optional)
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Outside hexagon or octagon (partial or full thread optional)
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off.plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a surface.SURF
Surface Treatment:
Phosphate
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81343-J514 professional/industrial association standard
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
42 figure
