Número de pieza NASM20230

Metallic Grommet
Descripción

Grommets

Disponibilidad de stock  Códigos de condición del producto

Número de pieza nasm20230 está en stock en las siguientes cantidades y condiciones.

  • NE: 1569
  • NS: 6460

Nota: La disponibilidad de este artículo se actualizó por última vez 11/03/2023 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

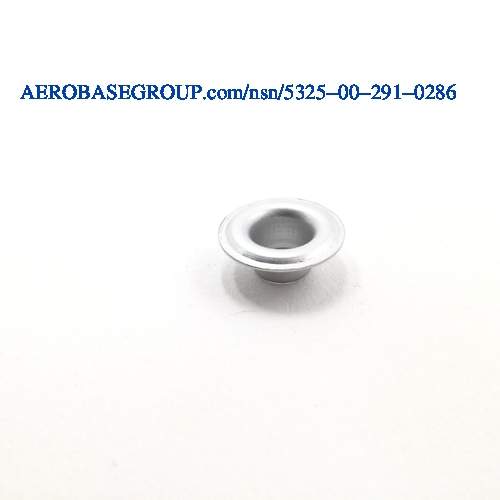

Imagen del número de acciones nacionales  5325-00-291-0286

El precio histórico de este producto está entre 11.2 and 15.12 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
nasm20230
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 GR
NIIN:
002910286
NSN
Número de acciones nacionales:
5325-00-291-0286 5325002910286
TXT
Descripción:
Metallic Grommet
INC
INC
Código de nombre del artículo:
06314
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the washer.AAVV
Washer Style:
Flat w/ formed inner edge
MRC:
None.ADBA
Barrel Height:
0.175 inches
MRC:
The length of a straight line which passes through the center of the flange,and terminates at the outside circumference.AEPR
Flange Outside Diameter:
0.545 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the barrel.AGLU
Barrel Style:
Tapered round type
MRC:
None.AGLV
Barrel Outside Diameter:
0.240 inches
MRC:
None.AGLW
Barrel Largest Outside Diameter:
0.290 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the flange.CTCJ
Flange Style:
Flange
MRC:
A characteristic of light that can be specified in terms of luminance,dominant wavelength,and purity.HUES
Color:
Any acceptable
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
1 type and 5 class and 0 size
