Número de pieza NAS42HT5-30

Sleeve Spacer

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

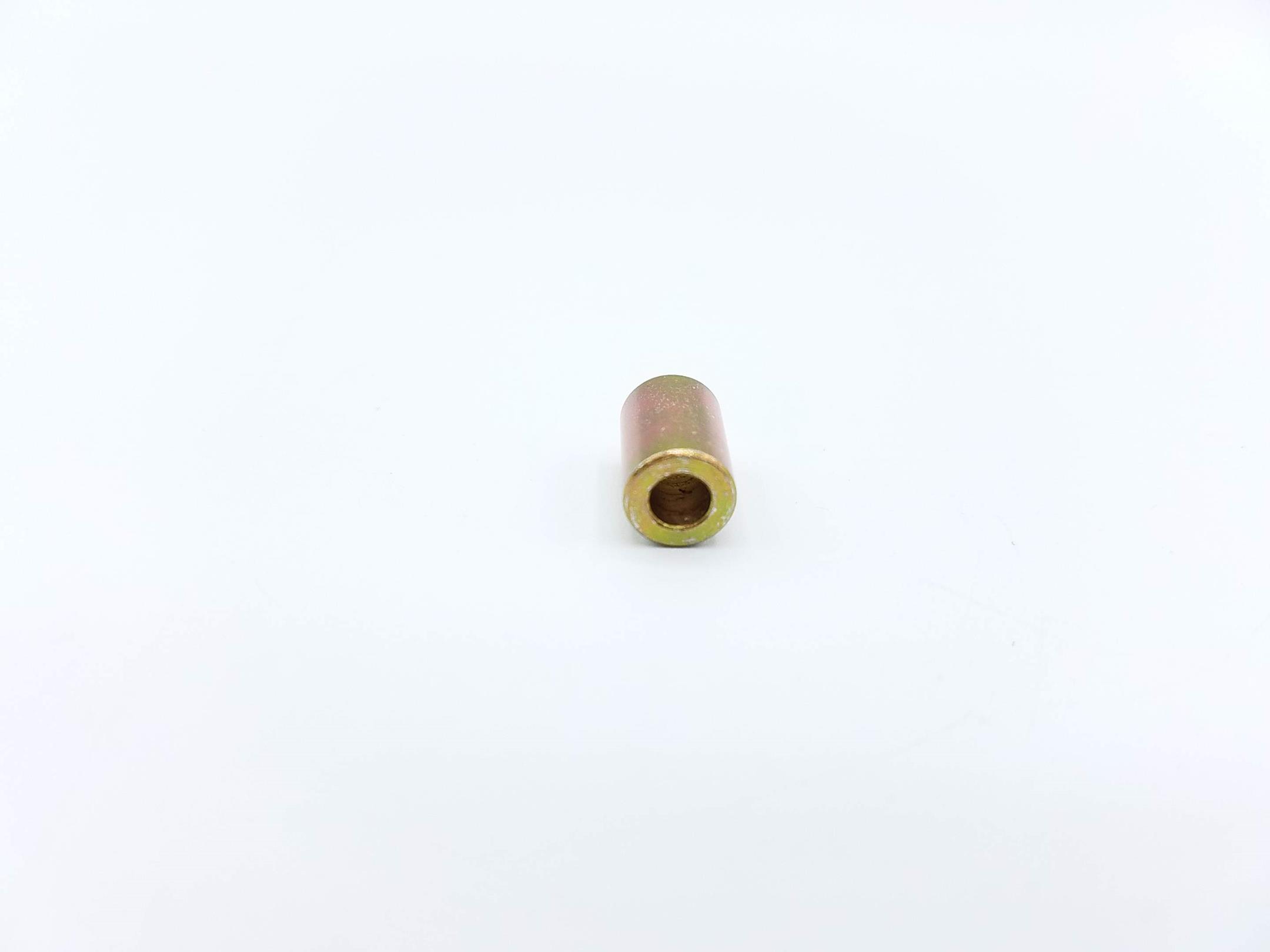

Imágenes

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales  5365-00-580-1615 Imagen del número de acciones nacionales  5365-00-580-1615 Imagen del número de acciones nacionales  5365-00-580-1615

El precio histórico de este producto está entre 0.08 and 0.108 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
nas42ht5-30
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
005801615

Información de la pieza
Color bronze

NSN
Número de acciones nacionales:
5365-00-580-1615 5365005801615
TXT
Descripción:
Sleeve Spacer
INC
INC
Código de nombre del artículo:
13207
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 0.4630 inches and 0.4730 inches
MRC:
The length of a straight line which passes through the center of the body,and terminates at the outside circumference.ADAR
Body Outside Diameter:
Between 0.3020 inches and 0.3220 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
Between 0.1060 inches and 0.1660 inches
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square all corners
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 4130 or steel comp 8630 or steel comp 8630
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
17C solid plain no outside flanges
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Solid plain no outside flanges
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-NAS42 professional/industrial association standard
