Número de pieza NAS1587-3C

Recessed Washer
Descripción

Washer

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

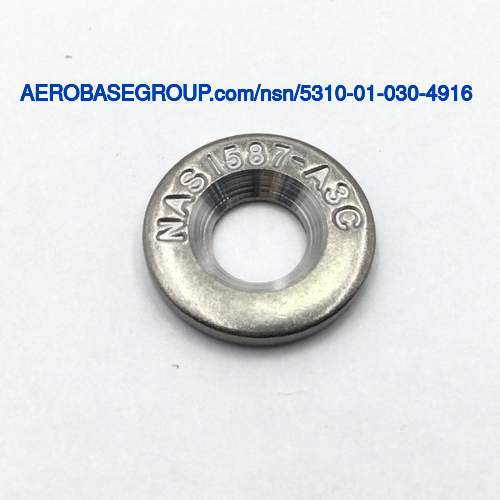

Imagen del número de acciones nacionales 5310-01-030-4916

El precio histórico de este producto está entre 0.24 and 0.324 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
nas1587-3c
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
100 EA
NIIN:
010304916

Información de la pieza
Temperature rated 1200 degrees fahrenheit

NSN
Número de acciones nacionales:
5310-01-030-4916 5310010304916
TXT
Descripción:
Recessed Washer
INC
INC
Código de nombre del artículo:
15933
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.192 inches and 0.198 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
Between 0.459 inches and 0.479 inches
MRC:
The length of a straight line which passes through the center of the recess,and terminates at the circumference.ABMD
Recess Diameter:
Between 0.275 inches and 0.285 inches
MRC:
A measurement of the smallest dimension of the material,in distinction from length or width.ABPX
Material Thickness:
Between 0.052 inches and 0.072 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
A-10 aircraft
MRC:
None.CSTM
Recess Angle:
45.0 degrees
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 321 and steel comp 347
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-S-763 federal specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
MIL-S-5002 military specification single treatment response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
15 recessed
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-NAS1587 professional/industrial association standard
