Número de pieza NAS1291-C06M

Extended Washer Self-locking Nut
Descripción

Nut

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

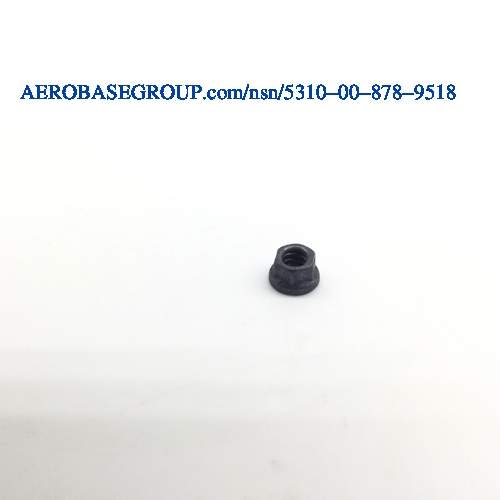

Imagen del número de acciones nacionales 5310-00-878-9518

El precio histórico de este producto está entre 134.9 and 182.115 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
nas1291-c06m
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 HD
NIIN:
008789518
NSN
Número de acciones nacionales:
5310-00-878-9518 5310008789518
TXT
Descripción:
Extended Washer Self-locking Nut
INC
INC
Código de nombre del artículo:
29730
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3B
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque all metal design
MRC:
None.AAVX
Washer Outside Diameter:
0.244 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
Between 0.115 inches and 0.141 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Hexagon
MRC:
None.ADEM
Washer Thickness:
0.010 inches
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 0.181 inches and 0.190 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
550.0 degrees fahrenheit
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unc
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
32
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.138 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
