Número de pieza:
nas1199-6-20
Unidad de medida:
No qup LB
Información de la pieza

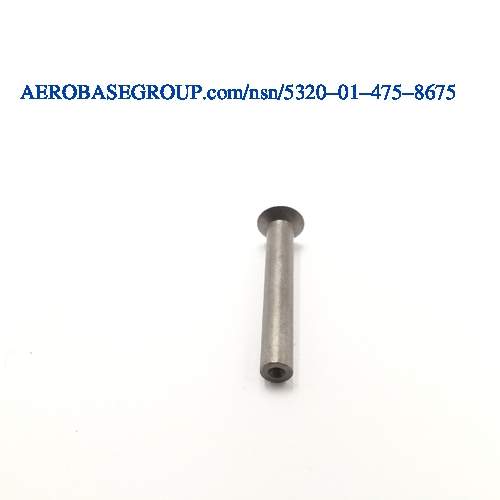

Rivet solid 100 degree flush head A286 corrosion resistant steel
NSN
Número de acciones nacionales:
TXT
Descripción:
Solid Rivet
Código de nombre del artículo:
00861
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
1.250 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.186 inches and 0.191 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Countersunk (undrilled)
Head Major Diameter:
Between 0.323 inches and 0.365 inches
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
Between 95.0 degrees and 100.5 degrees
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Oshear strength at room temp as follows 85, 000 psi to 95, 000 psi 90, 000 psi after driving heat at 1650 degrees f for 25 minutes and oil quench age at 1250 degrees f to 1350 degrees f for 30 to 90 min to meet shear requirements; rivets hall drive cold satisfactorly with full heads free from cracks must be of uniform quality and free from scale fins seams clinch or die marks cold shuts or other injurous defects head cocking angle relative to axis of rivet .5 degree max
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
AMS5737 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-35 federal specification single treatment response
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-NAS1199 professional/industrial association standard
