Número de pieza:
n-50004-d
Información de la pieza
E/I2-82-001-4476
NSN
Número de acciones nacionales:
TXT
Descripción:

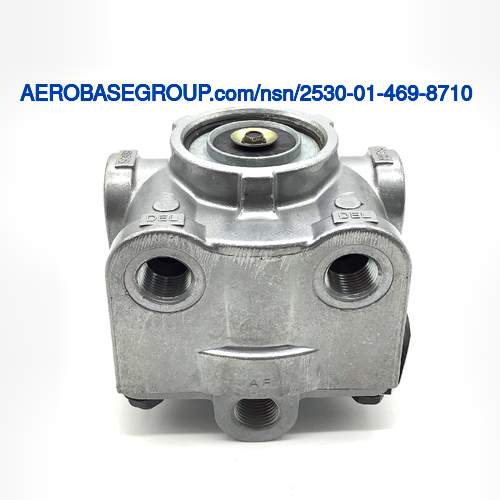

Air Pressure Relay Valve
Código de nombre del artículo:
36296
MRC:
The basic material of which the body is fabricated.AAFZ
Body Material:
Aluminum alloy or zinc alloy
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Multiple cionnection
MRC:
The type of service with which the item is designed to be used.ACKL
Media For Which Designed:
Air
MRC:
A narrative description of the type of end connection.ACKM
First End Connection Type:
Threaded internal pipe
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the end.ACKN
First End Style Designator:
Flare
MRC:
The industrial designation or term used to define the nominal diameter of the pipe the end will accommodate.ACLG
First End Pipe Size Accommodated:
0.500 inches
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.ACLL
First End Thread Direction:
Right-hand
MRC:
Indicates whether or not the second end is identical to the first end.ACLR
Second End Relationship With First End:
Identical
MRC:
Indicates whether or not the third end is identical with first or second end.ACMX
Third End Relationship With Preceding Ends:
Not identical with first or second end
MRC:
A narrative description of the type of end connection.ACMY
Third End Connection Type:
Threaded internal pipe
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the end.ACMZ
Third End Style Designator:
Plain
MRC:
The industrial designation or term used to define the nominal diameter of the pipe the end will accommodate.ACNV
Third End Pipe Size Accommodated:
0.375 inches
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.ACNZ
Third End Thread Direction:
Right-hand
MRC:
Indicates whether or not the fourth end is identical with the first,second,or third end.ACPE
Fourth End Relationship With Preceding Ends:
Identical with third end
MRC:
The number of end connections included in the item.ADQZ
End Connection Quantity:
4
MRC:
An indication of whether or not the temperature is adjustable.AEVX
Tempurature Adjustability:
Not adjustable
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Tactical vehicles
MRC:
A designator distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.CQMM
First End Thread Series Designator:
Nptf
MRC:
The designation which is used for the purpose of general identification of the nominal thread size.CQYM
First End Thread Size:
0.500 inches
MRC:
The designation which is used for the purpose of general identification of the nominal thread size.CSCN
Err Default:
Err default
MRC:
A designator distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.CSDF
Err Default:
Err default
