Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Información de la pieza
Compartment, storage contains 1 diffused lens 1 blackout filter 2 red filters and 1 blue filter
NSN
Número de acciones nacionales:
TXT
Descripción:

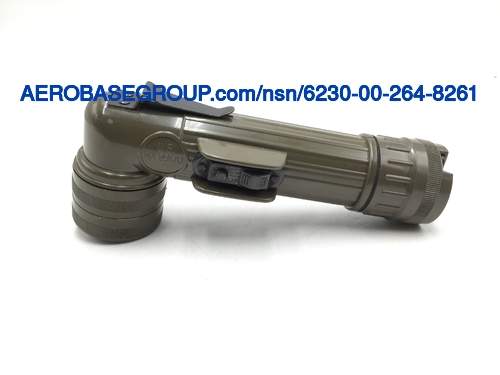

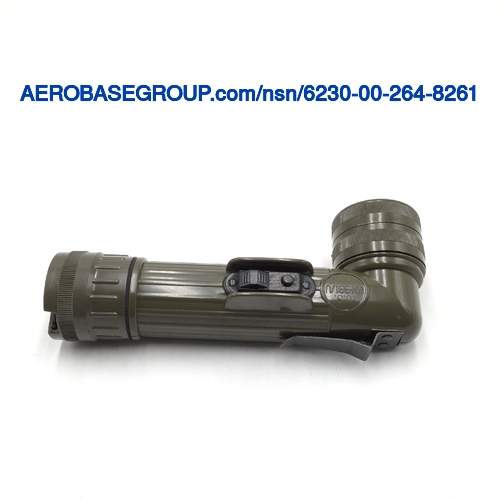

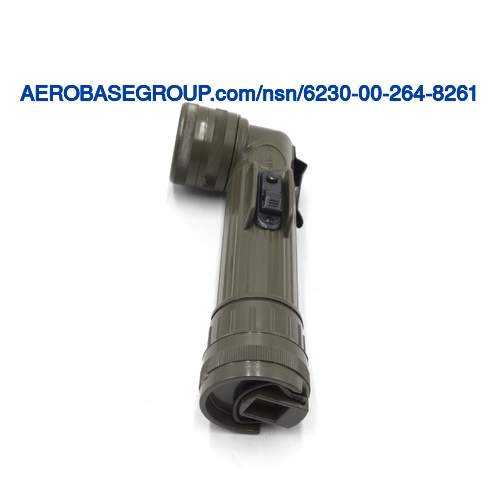

Flashlight
Código de nombre del artículo:
00729
MRC:
The specific commercial rating which classes the item as to what degree the item will withstand environmental elements and/or hazardous locations.ABFE
Hazardous Locations/environmental Protection:
Watertight
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
8.500 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
2.250 inches
MRC:
Indicates the type of lamp base the item will accommodate.AEUJ
Lamp Base Type Accommodated:
Single contact miniature flanged
MRC:
The hue or tint of the lens.AEXD
Lens Color:
Colorless
MRC:
The ability of the lens to transmit light and allow visual perception.AEXK
Lens Transparency:
Transparent
MRC:
The pattern of motion of the light beam when in operation.AEYM
Light Beam Motion:
Fixed and flashing
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Torpedo adcap 48; M1A2 heavy assault bridge (hab) wolverine 5420-01-430-4247; spruance class d (963); armored vehicle launch bridge (M60A1 & M48A5); M1A2 system enhancement prog 2350-01-328-5964 (eaa CMBT85SEP); ticonderoga class CG(47); field artillery ammunition support VEHICLE(FAAGV)(M992); deep submergence systems programs (dssp) M1A2 abrams tank 2350-01-328-5964 (eaa CMBT85PK3) pads AN/USQ-70; floating causeway roll on/roll off discharge facility
MRC:
The voltage rating at which the item is designed to operate,expressed in volts.ASXH
Voltage Rating In Volts:
3.0 dc
MRC:
The means of attaching the item.AXGY
Mounting Method:
Ring
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Switch and replaceable battery and removable light filter
MRC:
Indicates the type and number of lamps that the item can accommodate.CRHX
Lamp Type Accommodated And Quantity:
1 incandescent
MRC:
Indicates the type and number of lenses included in the item.CRLP
Lens Type And Quantity:
1 flat round
MRC:
Indicates the type and number of batteries required for operation.CSGT
Battery Type And Quantity Required:
2 dry
MRC:
The condition of the lens with respect to the texture of the surface.CTXJ
Lens Surface Condition:
Smooth face
MRC:
The condition of the lens with respect to the texture of the surface.CTXJ
Lens Surface Condition:
Smooth back
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic abs body
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic reflector
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polycarbonate filter
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polycarbonate lens
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
L-P-1183, ty vi federal specification single material response body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
L-P-1183, ty vi federal specification single material response reflector
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
L-P-393 federal specification single material response filter
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
L-P-393 federal specification single material response lens
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Vacuum plated or electro plated reflector
MRC:
The physical configuration of the item.SHPE
Shape:
Right angle
MRC:
The name and number of those parts furnished with the item of supply that have not been specified elsewhere.TMQY
Furnished Items And Quantity:
2 lamp
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
1 spring compression
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
I type and 2 style and 2 cell cz
MRC:
The variation when the item is in conformity with a type designator covered by a specification or standard,except in regard to one or more technical differentiating characteristics.ZZZX
Departure From Cited Designator:
As modified by olive drab color
