Información de la pieza
Weapon system essential
NSN
Número de acciones nacionales:
TXT
Descripción:

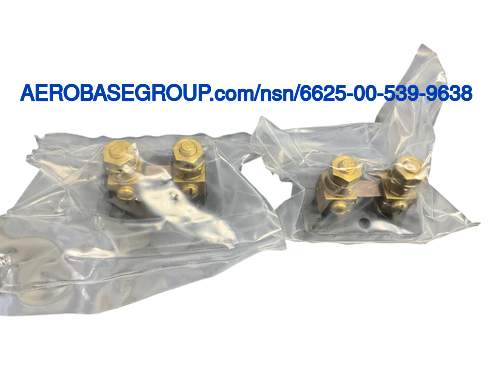

Instrument Shunt
Código de nombre del artículo:
00122
MRC:
The number of mounting provisions provided.ABDS
Mounting Provision Quantity:
2
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 1.970 inches and 2.030 inches
MRC:
The distance between the center of one mounting facility and the center of the adjacent mounting facility parallel to the length.ABKQ
Center To Center Distance Between Mounting Facilities Parallel To Length:
Between 0.845 inches and 0.905 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
Between 1.658 inches and 1.718 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 1.220 inches and 1.280 inches
MRC:
The length of a straight line which passes through the center of an unthreaded mounting hole,and terminates at the circumference.AEBV
Unthreaded Mounting Hole Diameter:
Between 0.190 inches and 0.220 inches
MRC:
The name and number of those parts furnished with the item of supply that have not been specified elsewhere.AKYN
Furnished Items And Quantity:
Nut 4; lockwasher 4; screw 2
MRC:
Indicates the designed use of the item.ALBY
Usage Design:
External
MRC:
An indication of the accuracy of an item,expressed in percent.APPN
Accuracy In Percent:
-0.25/+0.25 all ranges
MRC:
The element,compound,or mixture of which the element is fabricated,excluding any surface treatment.AQCW
Element Material:
Any acceptable
MRC:
The means of attaching the item.AXGY
Mounting Method:
Unthreaded hole
MRC:
A measurement of volume taken by multiplying the length by the width by the height of an item and rendered in cubic units.CBME
Cubic Measure:
4.464 cubic inches
MRC:
Indicates the location of the terminal/s/ on the item.CQTM
Terminal Location:
One side and top
MRC:
The loss of potential resulting from the inherent opposition to the flow of electricity across the item,expressed in millivolts.CRCM
Voltage Drop In Millivolts:
50.0
MRC:
Indicates the type of current and the rated value for which the item is designed.CRCT
Current Rating And Type:
50.0 amperes dc
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Feat
MRC:
The specification,standard,drawing,or similar instrument that specifies environmental and performance requirements or test conditions under which an item is tested and establishes acceptable limits within which the item must conform identified by an alphabetic and/or numeric reference number. includes the commercial and government entity (cage) code of the entity controlling the instrument.TEST
Test Data Document:
58536-A-A-55524 specification (includes engineering type bulletins brochures etc that reflect specification type data in specification format excludes commercial catalogs industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical" "average" "" etc)
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
2 threaded stud and 2 screw
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
58536-A-A-55524/1 government specification
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
MSA500 type
MRC:
The justification for the assignment of a federal supply class /fsc/ to an item based on the classification of the next higher classifiable assembly.ZZZV
Fsc Application Data:
Test set elect Equip
