Número de pieza MS51500B12

Pipe To Tube Straight Adapter
Disponibilidad de stock  Códigos de condición del producto

Número de pieza ms51500b12 está en stock en las siguientes cantidades y condiciones.

  • NE: 97
  • NS: 62
  • SV: 4

Nota: La disponibilidad de este artículo se actualizó por última vez 10/10/2022 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

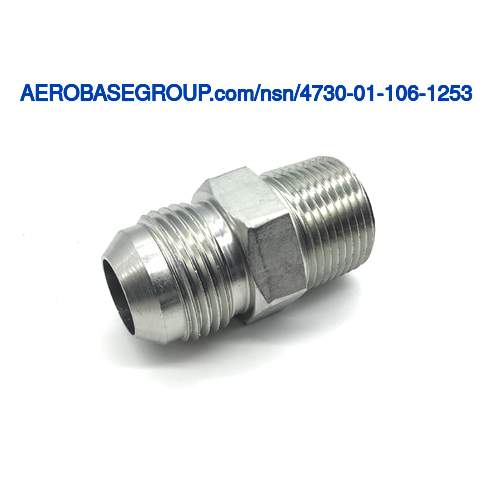

Imagen del número de acciones nacionales 4730-01-106-1253

El precio histórico de este producto está entre 38 and 51.3 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
ms51500b12
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
011061253
NSN
Número de acciones nacionales:
4730-01-106-1253 4730011061253
TXT
Descripción:
Pipe To Tube Straight Adapter
INC
INC
Código de nombre del artículo:
03776
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2A 1ST end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Flared (tube) 1ST end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Inverted flare (pipe) 2ND end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external pipe 2ND end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external tube 1ST end
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
12 1ST end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.750 inches 2ND end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
1.062 inches 1ST end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
37.0 degrees 1ST end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
37.0 degrees 2ND end
MRC:
The nominal dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.CWFR
Nominallength:
2.060 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Nptf 2ND end
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Un 1ST end
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
96906-MS51500 government standard and 81343-070102 professional/industrial association specification
