Número de pieza:
ms28934-1
Unidad de medida:
No qup EA
NSN
Número de acciones nacionales:
TXT
Descripción:

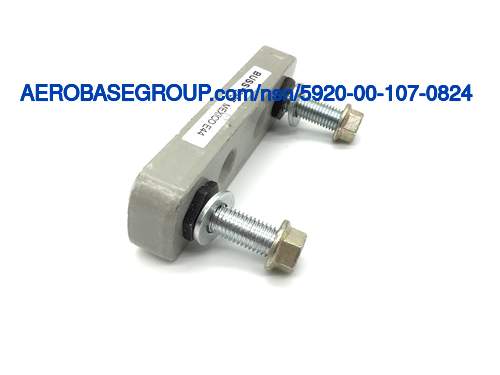

Block Fuseholder
Código de nombre del artículo:
28908
MRC:
The basic material of which the body is fabricated.AAFZ
Body Material:
Plastic polyester MIL-M-14, type MAI-60 and plastic silicone MIL-M-14, type MSI-30
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Open type
MRC:
The element,compound,or mixture of which the terminal is fabricated.ABDM
Terminal Material:
Cadmium QQ-P-416 and silver plated QQ-S-365
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off. plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a terminal surface.ABDN
Terminal Surface Treatment:
Steel MIL-S-6050
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
3.943 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
1.922 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 0.907 inches and 0.969 inches
MRC:
The length of a straight line which passes through the center of a mounting hole,and terminates at the circumference.ABTB
Mounting Hole Diameter:
0.190 inches
MRC:
The number of mounting holes provided.ABTJ
Mounting Hole Quantity:
2
MRC:
A measurement of the smallest dimension of a base,in distinction from length or width.ACYB
Base Thickness:
0.580 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the mounting hole(s).AEVB
Mounting Hole Style:
In-line along the length
MRC:
The element,compound,or mixture of which the contact/s/ is fabricated,excluding any surface treatment.AFRG
Contact Material:
Steel
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off. plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects the contact surface.AFRH
Contact Surface Treatment:
Cadmium QQ-P-416
MRC:
The number of fuses the item is designed to accommodate /including spares/.AGUE
Fuse Accommodation Quantity:
1
MRC:
A measurement of the longest dimension of a fuse the item can accommodate.AGUJ
Accommodated Fuse Length:
3.188 inches
MRC:
A measurement taken at right angles to the length of the accommodated fuse,in distinction from thickness.AGUL
Accommodated Fuse Width:
0.750 inches
MRC:
A measurement of the smallest dimension of the accommodated fuse,in distinction from length or width.AGUM
Accommodated Fuse Thickness:
0.094 inches
Center To Center Distance Between Fuse Contacts:
Between 2.433 inches and 2.443 inches
Center To Center Distance Between Outside Mounting Holes Along Length:
Between 0.995 inches and 1.005 inches
MRC:
The length of a straight line which passes through the center of a coaxial cylinder which would bound the crest of an external thread or the root of an internal thread.AJYN
Screw Thread Diameter:
0.312 inches
MRC:
The number of screw threads on the item per linear inch measured on a line parallel to the thread axis,including incomplete threads.AJYQ
Screw Thready Qty Per Inch (tpi):
24.0
MRC:
The amount of electrical current the item is designed to carry,expressed in amperes.CQJL
Current Carrying Rating In Amps:
500.0
MRC:
The pattern of conductors and connections within the item which,when fused,provides electrical continuity to mainline circuits or from mainline to branch circuits,as applicable,and the number of poles.CSDX
Internal Circuit Configuration And Pole Quantity:
1 pole mainline fused
MRC:
Indicates the type of fuse terminations which the item will accommodate.CSNM
Fuse Terminal Type Accommodated:
Slotted lug
MRC:
The total electrical voltage.ELEC
Voltage In Volts:
41.0
MRC:
The specification,standard,drawing,or similar instrument that specifies environmental and performance requirements or test conditions under which an item is tested and establishes acceptable limits within which the item must conform identified by an alphabetic and/or numeric reference number. includes the commercial and government entity (cage) code of the entity controlling the instrument.TEST
Test Data Document:
81349-MIL-F-5373C specification (includes engineering type bulletins brochures etc that reflect specification type data in specification format excludes commercial catalogs industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical" "average" "" etc)
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
2 threaded stud
