Número de pieza MS28913-4C

Airframe Roller Bearing
Descripción

Bearing

Disponibilidad de stock  Códigos de condición del producto

Número de pieza ms28913-4c está en stock en las siguientes cantidades y condiciones.

  • NE: 242
  • NS: 43
  • AR: 1
  • SV: 1
  • OH: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 06/16/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

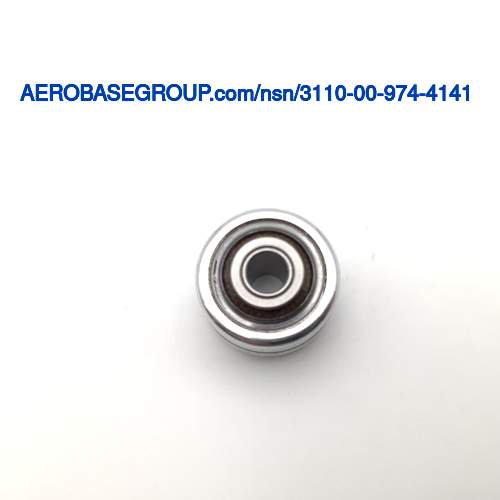

Imágenes

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales  3110-00-974-4141

El precio histórico de este producto está entre 210.52 and 284.202 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
ms28913-4c
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
009744141

Información de la pieza
Lubricant holes and groove in outer ring two heat treated sleeves and collars on inner ring radial clearance 0.0002 in To 0.0017 in

NSN
Número de acciones nacionales:
3110-00-974-4141 3110009744141
TXT
Descripción:
Airframe Roller Bearing
INC
INC
Código de nombre del artículo:
00046
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.2495 inches and 0.2500 inches
MRC:
The overall length of a straight line which passes through the center of an item,and terminates at the outside circumference.ADGA
Overall Outside Diameter:
Between 0.9009 inches and 0.9014 inches
MRC:
The element,compound,or mixture with which the item is lubricated.ADZG
Lubrication Material:
Grease
MRC:
None.AGVT
Outer Ring Width:
0.4640 inches
MRC:
None.AGVU
Inner Ring Width:
Between 0.6200 inches and 0.6250 inches
MRC:
The number of seals included on the item.AGYJ
Seal Quantity:
2
MRC:
Indicates the type of seal provided with the bearing.AGYW
Bearing Seal Type:
Contact
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the lubrication material.LMDC
Lubrication Material Specification:
MIL-G-23827 military specification single material response
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Rubber synthetic seal
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel inner ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel outer ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel retainer
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel roller
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium all external/exposed metal surfaces
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Concave rollers double closure self aligning
