Número de pieza MS28038-2

Electric Temperature Transmitter
Descripción

Oat sensor

Disponibilidad de stock  Códigos de condición del producto

Número de pieza ms28038-2 está en stock en las siguientes cantidades y condiciones.

  • NE: 2
  • AR: 4
  • NS: 1
  • SV: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 10/23/2024 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

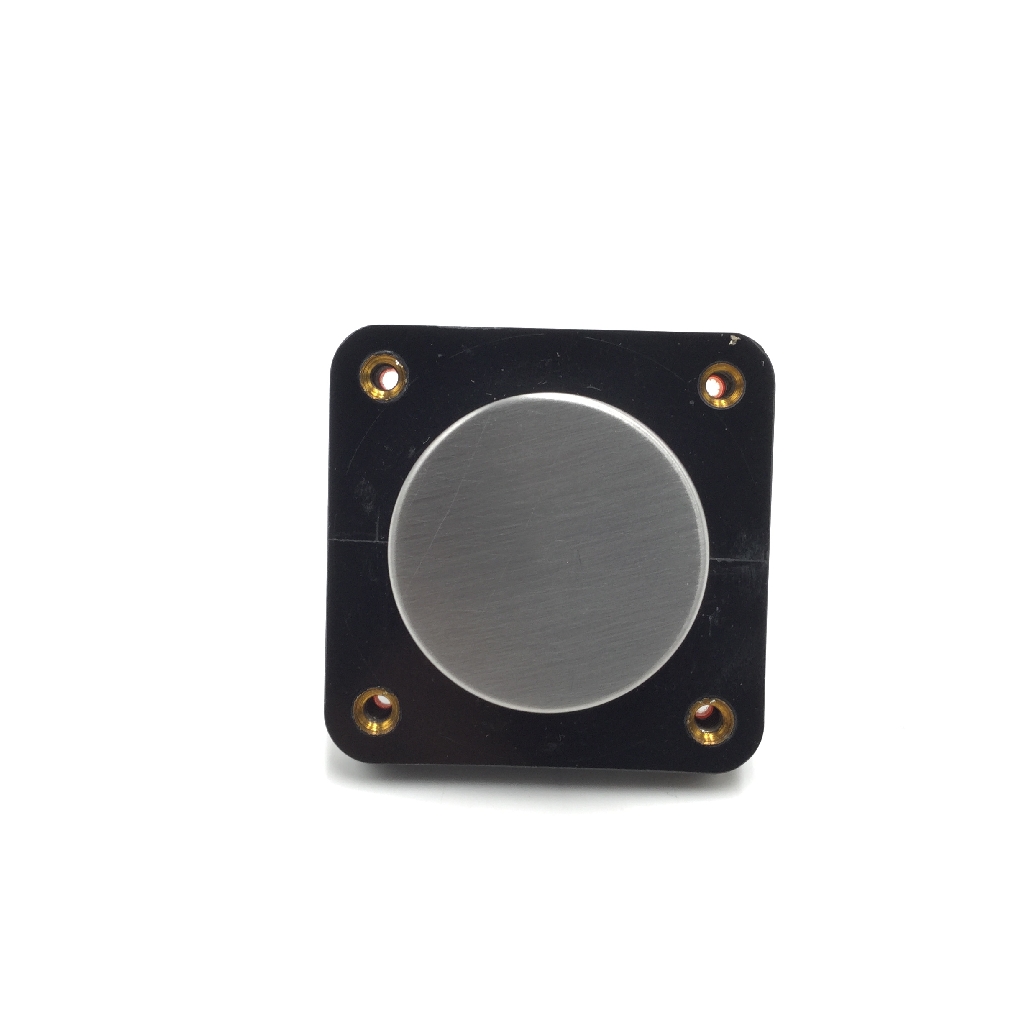

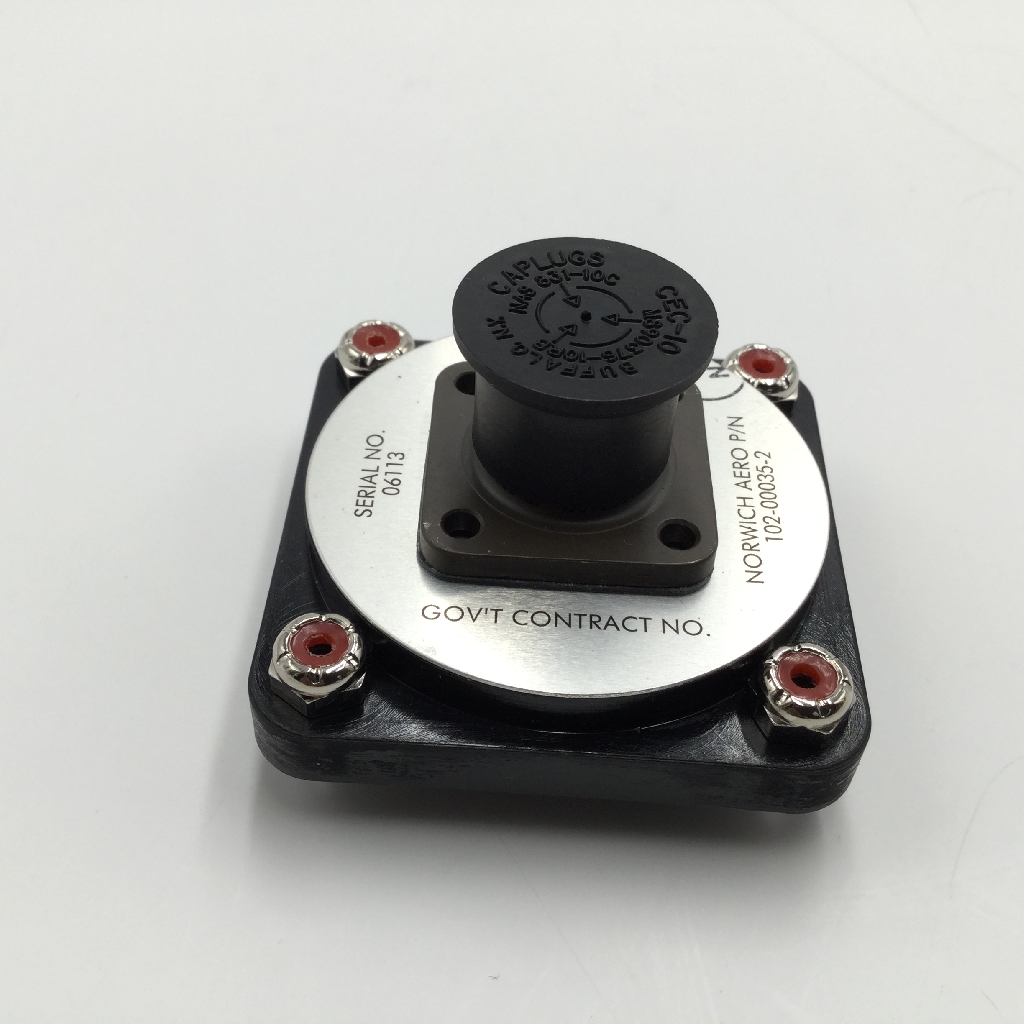

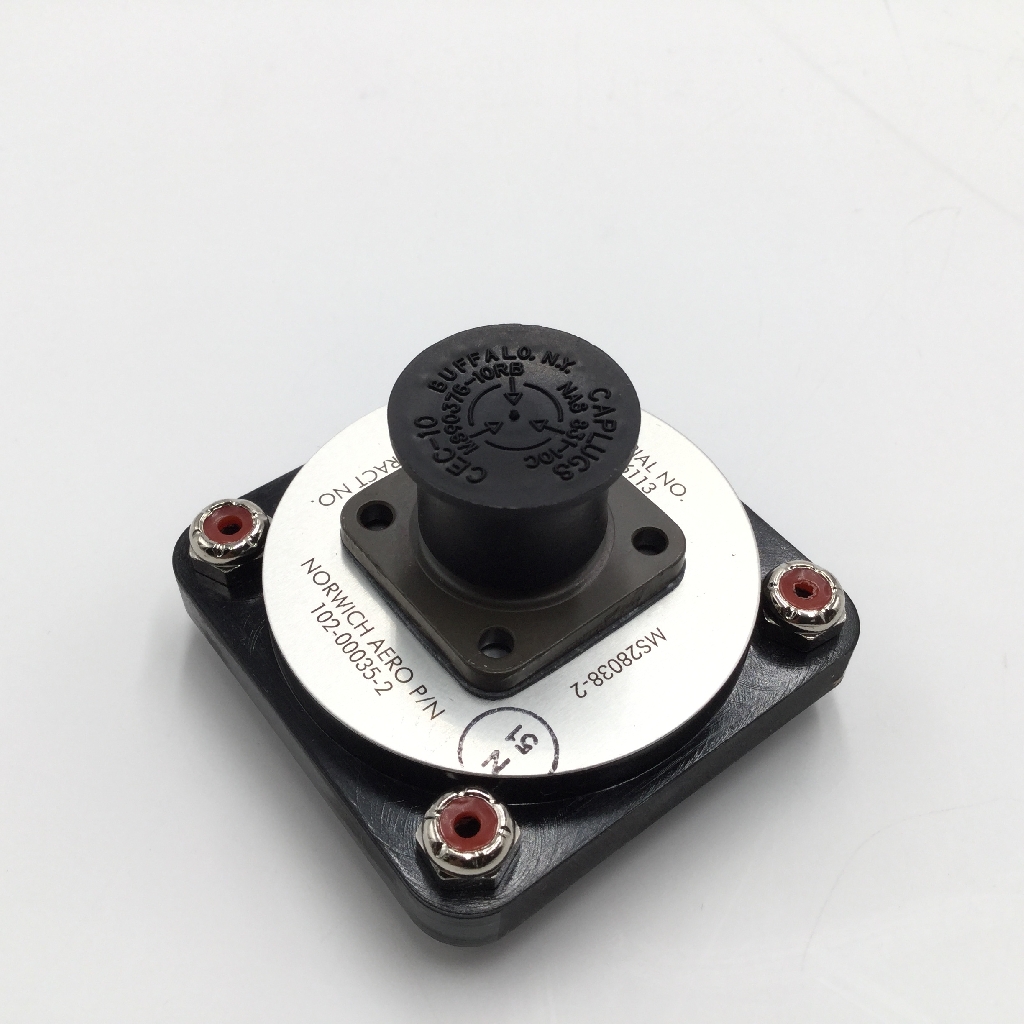

Imágenes

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales  6685-00-515-5146 Imagen del número de acciones nacionales  6685-00-515-5146 Imagen del número de acciones nacionales  6685-00-515-5146

El precio histórico de este producto está entre 405.2 and 547.02 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
ms28038-2
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
005155146
NSN
Número de acciones nacionales:
6685-00-515-5146 6685005155146
TXT
Descripción:
Electric Temperature Transmitter
INC
INC
Código de nombre del artículo:
20340
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
0.640 inches
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.350 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
0.281 inches
MRC:
The minimum and maximum limits of temperature at which the item is rated for operation.AFGA
Operating Tempurature Range:
-70.0/+70.0 degrees celsius
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Deep submergence systems programs aircraft stratofortress B-52; C-135; aircraft hercules C-130; aircraft greyhound C-2; aircraft viking S-3A
MRC:
Indicates the type of unit.APQB
Unit Type:
Flush
MRC:
Indicates the type and number of facilities by which the item is mounted.AXHR
Mounting Facility Type And Quantity:
1 plate
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Gasket
MRC:
None.CSZY
Distance Across Wrenching Surface Flats:
2.050 inches
MRC:
Indicates the type and number of contacts accommodated by the item.CTXB
Accommodated Contact Type And Quantity:
2 male snap-on
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Transmitter, 24V dc
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
1 threaded stud
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
B-3 type
