Número de pieza:
ms27977-21c
NSN
Número de acciones nacionales:
TXT
Descripción:

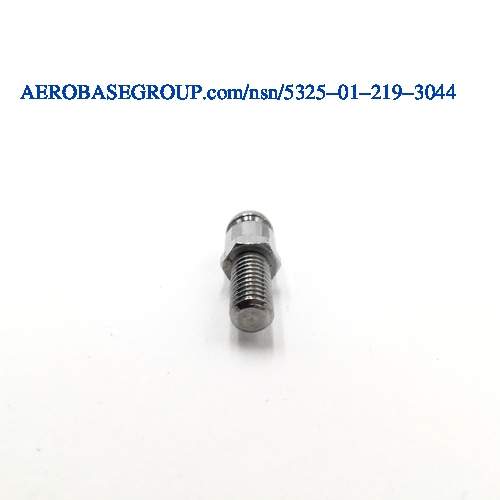

Snap Fastener
Código de nombre del artículo:
16560
MRC:
A measurement of the longest dimension of the body,in distinction from width.ADAQ
Body Length:
0.188 inches
MRC:
A measurement taken at right angles to the length of a plate,in distinction from thickness.ADEC
Plate Width:
0.812 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the snap fastener stud.AGMX
Snap Fastener Stud Style:
Stud
Stud Shank Length:
0.375 inches
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the stud.AGMZ
Studlength:
0.766 inches
Stud Base Width Across Flats:
0.250 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the snap fastener socket.AGNG
Snap Fastener Socket Style:
Socket
Socketheight:
0.375 inches
Socket Prong Length:
0.250 inches
Socket Width:
0.750 inches
Socket Length:
0.875 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the snap fastener clinch plate.AGNN
Snap Fastener Clinch Plate Style:
Clinch plate
MRC:
A measurement of the longest dimension of a plate,in distinction from width.AGNQ
Plate Length:
0.938 inches
MRC:
The means by which the stud is assembled to the end item.AGPC
Stud Retention Method:
Screw base
Plateheight:
0.062 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 260 or copper alloy 360
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-B-613 federal specification 1ST material response or QQ-B-626 federal specification 2ND material response or MIL-C-50 military specification 3RD material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Chromium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-C-320, cl 1, type 1 federal specification single treatment response
MRC:
Designates the thread diameter,series/type,and number of threads per specific measurement scale.THDS
Thread Size And Series/type Designator:
0.190-32 unf
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
1 style
