Número de pieza:
ms27223-4
NSN
Número de acciones nacionales:
TXT
Descripción:

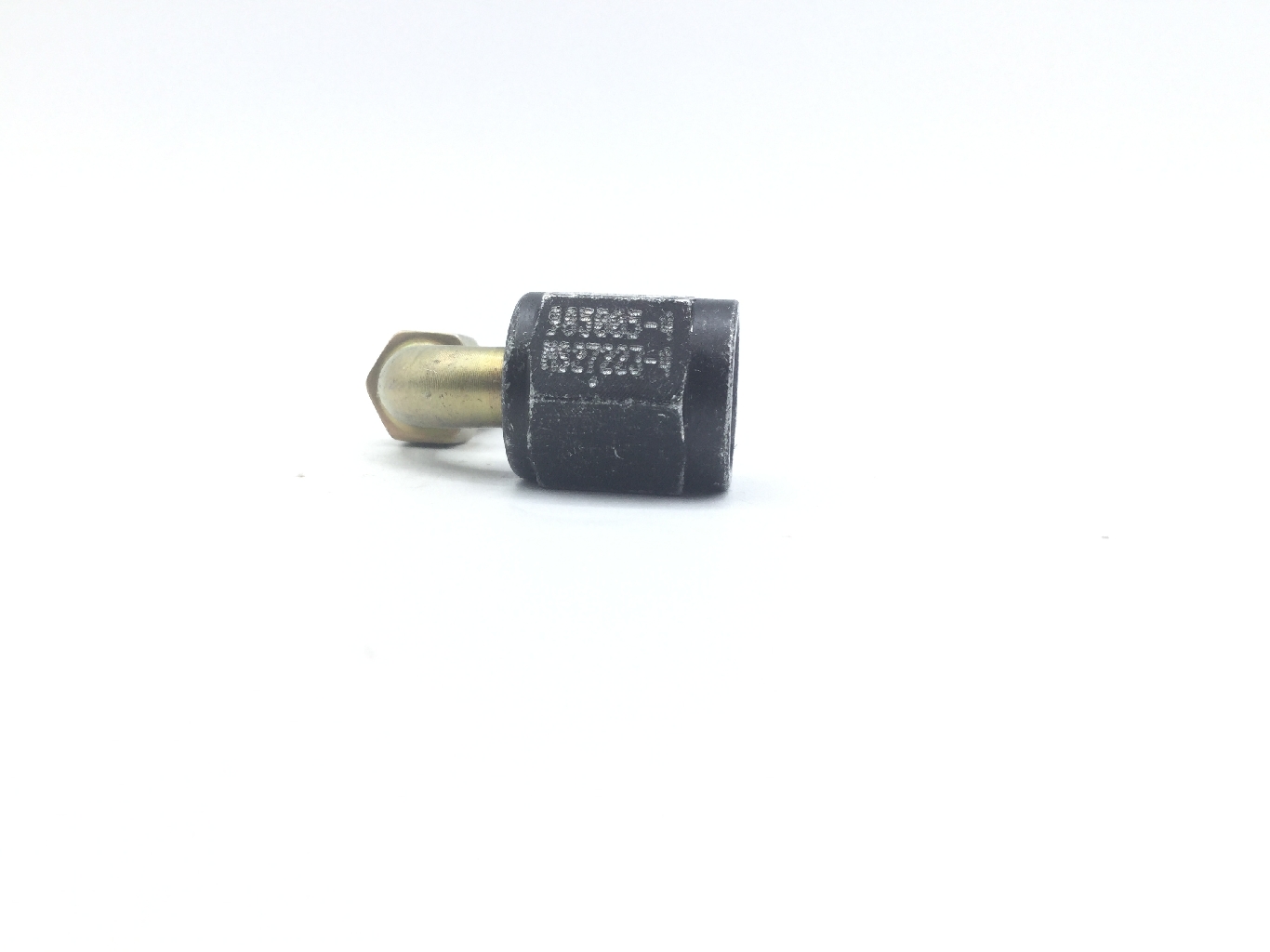

Tube To Hose Elbow
Código de nombre del artículo:
03772
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3B 1ST end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Gripping nipple (nose) 2ND end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Swivel nut flare (tube) style 3 optional end 1ST end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
1.088 inches 1ST end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
1.686 inches 2ND end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external hose gripping 2ND end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded internal tube 1ST end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.438 inches 1ST end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
37.0 degrees 1ST end
MRC:
The angle that the flow is turned from the straight flow.CRFY
Flow Angle:
90.0 degrees
MRC:
The nominal length of a straight line which passes through the center of the accommodated hose,and terminates at the inside circumference.CWDW
Inside Diameter Hose Accommodated:
0.250 inches 2ND end
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
0.250 inches 1ST end
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium inside
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium outside
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 1, cl 3 federal specification single treatment response outside
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 1, cl 3 federal specification single treatment response inside
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unf 1ST end
