Número de pieza MS21076L06N

Plate Self-locking Nut
Descripción

#n/a

Disponibilidad de stock  Códigos de condición del producto

Número de pieza ms21076l06n está en stock en las siguientes cantidades y condiciones.

  • NS: 1400
  • NE: 6979
  • SV: 17

Nota: La disponibilidad de este artículo se actualizó por última vez 11/05/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

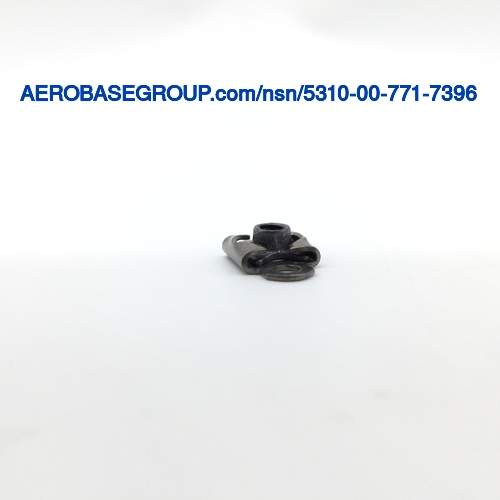

Imagen del número de acciones nacionales 5310-00-771-7396

El precio histórico de este producto está entre 2.26 and 3.051 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
ms21076l06n
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
100 EA
NIIN:
007717396
NSN
Número de acciones nacionales:
5310-00-771-7396 5310007717396
TXT
Descripción:
Plate Self-locking Nut
INC
INC
Código de nombre del artículo:
05280
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3B
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque all metal design
MRC:
The length of a straight line which passes through the center of a counterbored portion of a hole,and terminates at the circumference.AAWY
Counterbore Diameter:
0.178 inches nut and 0.270 inches nut
MRC:
A substance designed to provide a reduction of friction between the two surfaces in contact.ABAJ
Lubrication:
Dry film lubricant
MRC:
The length of a straight line which passes through the center of a mounting hole,and terminates at the circumference.ABTB
Mounting Hole Diameter:
Between 0.098 inches and 0.103 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Plate
MRC:
A measurement of the longest dimension of the nut,in distinction from width.ACVN
Nut Length:
0.682 inches
MRC:
None.ADEA
Nut Height:
0.171 inches
MRC:
A measurement of the smallest dimension of a plate,in distinction from length or width.ADEB
Plate Thickness:
0.140 inches
MRC:
A measurement taken at right angles to the length of a plate,in distinction from thickness.ADEC
Plate Width:
Between 0.290 inches and 0.357 inches
MRC:
The measurement of the enlarged portion adjacent to the threaded portion of a nut,in distinction from height.ADFK
Nut Counterbore Depth:
0.140 inches nut
MRC:
The means by which the nut is mounted.ADFP
Nut Mounting Provision:
Straight holes
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the mounting hole(s).ADFU
Mounting Hole Arrangement Style:
2 holes
MRC:
None.ADFW
Distance From Aperture Center To Mounting Hole Center:
Between 0.213 inches and 0.223 inches
MRC:
A measurement of the center to center distance between the mounting holes along the length.ADFY
Center To Center Distance Between Mounting Holes Along Length:
Between 0.435 inches and 0.439 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
450.0 degrees fahrenheit
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unjc
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Floating nut
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
32
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.138 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5735 assn standard single material response or ams 5737 assn standard single material response or ams 5525 assn standard single material response
