Número de pieza MS16624-1075

Retaining Ring
Descripción

Ring

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

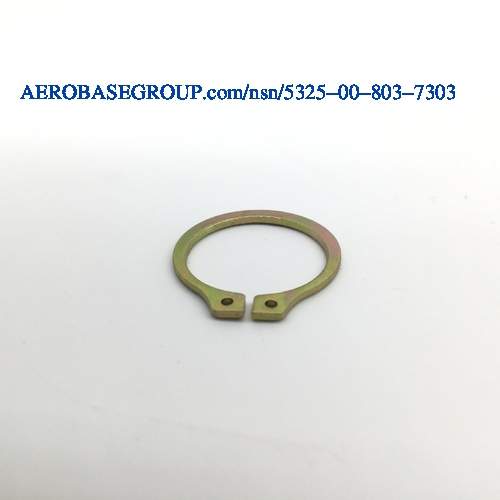

Imagen del número de acciones nacionales 5325-00-803-7303

El precio histórico de este producto está entre 0.22 and 0.297 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
ms16624-1075
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
100 EA
NIIN:
008037303
NSN
Número de acciones nacionales:
5325-00-803-7303 5325008037303
TXT
Descripción:
Retaining Ring
INC
INC
Código de nombre del artículo:
07623
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Rectangular
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
Between 0.683 inches and 0.698 inches
MRC:
Indicates whether or not a ferrous alloy object has been subjected to a process whereby the outer portion is made substantially harder than the inner portion or core.AASG
Casehardening Indicator:
Not casehardened
MRC:
None.ABMC
Major Thickness:
Between 0.040 inches and 0.044 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the ring.ACXD
Ring Style:
External
MRC:
Indicates the designed use of the item.ALBY
Usage Design:
External
MRC:
A numeric value that reflects the hardness of the material when used in conjunction with a hardness rating scale.ALME
Material Hardness Rating:
Between 66.0 rockwell superficial 30-N and 71.0 rockwell superficial 30-N
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Steel fed standard 66 aisi 1066 or 1069 or 1070 or 1072 or 1074 or 1075 or 1078 or 1080 or 1084 or 1086 or 1090
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel fed standard 66 aisi 1066 or 1069 or 1070 or 1072 or 1074 or 1075 or 1078 or 1080 or 1084 or 1086 or 1090
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and chromate or chromate zinc
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off.plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a surface.SURF
Surface Treatment:
Cadmium QQ-P-416, type 2, class 3 or zinc plated MIL-C-81562, type 2 cl 3
