Número de pieza MS16228-10

Hexagon Self-locking Nut
Descripción

Nut, sefl-locking

Disponibilidad de stock  Códigos de condición del producto

Número de pieza ms16228-10 está en stock en las siguientes cantidades y condiciones.

  • NS: 22
  • NE: 460

Nota: La disponibilidad de este artículo se actualizó por última vez 12/18/2024 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

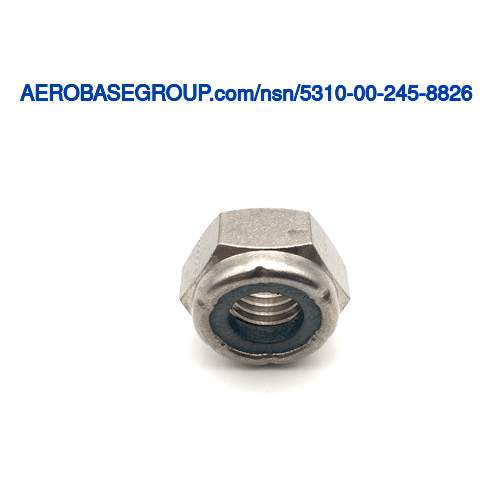

Imagen del número de acciones nacionales 5310-00-245-8826

El precio histórico de este producto está entre 8.34 and 11.259 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
ms16228-10
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
25 EA
NIIN:
002458826
NSN
Número de acciones nacionales:
5310-00-245-8826 5310002458826
TXT
Descripción:
Hexagon Self-locking Nut
INC
INC
Código de nombre del artículo:
05277
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3B
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque with nonmetallic insert
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Hexagon
MRC:
None.ADEA
Nut Height:
Between 0.594 inches and 0.624 inches
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 1.052 inches and 1.064 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
250.0 degrees fahrenheit
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unc
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
11
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.625 inches
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
88.0 degrees nut
MRC:
Indicates the type of bearing surface.CRTM
Bearing Surface Type:
Chamfered
MRC:
Designates the specific roughness rating of the bearing surface,representing the arithmetic average deviation of the surface from the meanline in profile.CSXL
Bearing Surface Finish:
125.0 microinches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyhexamethylene amide locking insert
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel except insert
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
66 federal standard all material responses except insert
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
MIL-M-20693, comp a type 1 military specification single material response locking insert
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate nut
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-35 federal specification single treatment response nut
