Número de pieza MS14304-1D02

Pipe Coupling
Disponibilidad de stock  Códigos de condición del producto

Número de pieza ms14304-1d02 está en stock en las siguientes cantidades y condiciones.

  • NS: 88
  • NE: 87
  • AR: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 08/18/2023 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

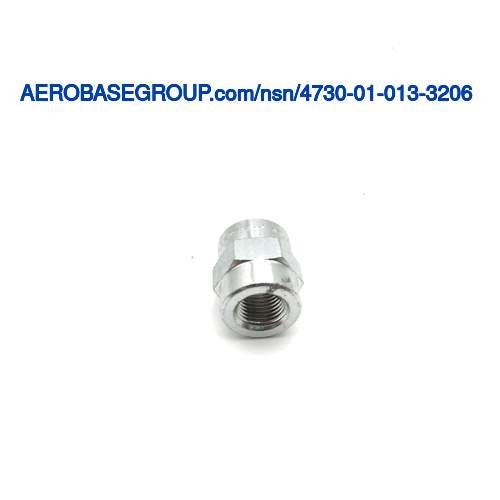

Imagen del número de acciones nacionales  4730-01-013-3206

El precio histórico de este producto está entre 5.86 and 7.911 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
ms14304-1d02
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
010133206
NSN
Número de acciones nacionales:
4730-01-013-3206 4730010133206
TXT
Descripción:
Pipe Coupling
INC
INC
Código de nombre del artículo:
06076
MRC:
A measurement of the pipe size the item will accommodate.AAAR
Pipe Size Accommodated:
0.125 inches all ends
MRC:
The maximum temperature at which the item is rated to operate for an extended period of time.AEHZ
Maximum Operating Temp:
700.0 degrees fahrenheit single response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Plain (pipe) all ends
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded internal pipe all ends
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
6000.0 pounds per square inch single response
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.125 inches 1ST end
MRC:
The nominal dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.CWFR
Nominallength:
1.250 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
ASTMA576 assn standard single material response
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Water-oil-gas single response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Plain
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Npt all ends
