Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
mil-t-15514etypeh-
Información de la pieza
Poseidon material trident material fathometer AN/BQN-17
NSN
Número de acciones nacionales:
TXT
Descripción:

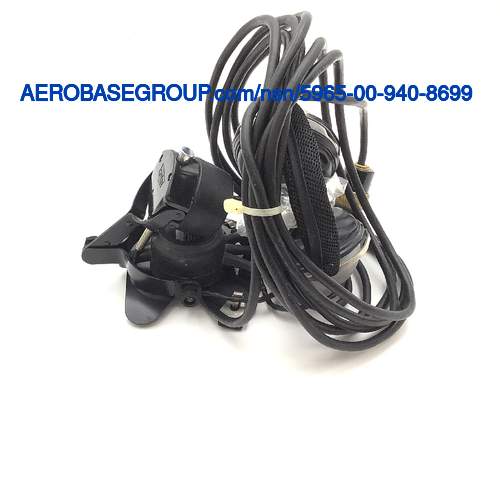

Electrical Headset-chest Set
Código de nombre del artículo:
00710
MRC:
The number of complete cyclic changes,per unit of time,for which an item is rated.ACZB
Frequency Rating:
Between 750.0 hertz and 2500.0 hertz
MRC:
The total opposition /resistive and reactive/ to the flow of alternating current.AFYY
Impedance Rating:
110.0 ohms
MRC:
The number of earphones provided on the item.AHES
Earphone Quantity:
2
MRC:
The total opposition (resistive and reactive) which the earphone offers to the flow of alternating current.BKSQ
Earphone Impedance Rating:
1.2 kilohms
MRC:
The opposition to the flow of direct current offered by an earphone.BKSR
Earphone Dc Resistance Rating:
400.0 ohms
MRC:
Indicates the type of microphone element or cartridge as determined by its construction and method of operation.BKSW
Microphone Element Type:
Magnetic
MRC:
The means provided to mount or otherwise accommodate a microphone.BKSZ
Microphone Mounting Facility:
Yoke
MRC:
The means used to suspend the chest plate.BKTJ
Chest Plate Suspension Method:
Neck strap
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Feat
MRC:
The specification,standard,drawing,or similar instrument that specifies environmental and performance requirements or test conditions under which an item is tested and establishes acceptable limits within which the item must conform identified by an alphabetic and/or numeric reference number. includes the commercial and government entity (cage) code of the entity controlling the instrument.TEST
Test Data Document:
81349-MIL-T-15514 specification (includes engineering type bulletins brochures etc that reflect specification type data in specification format excludes commercial catalogs industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical" "average" "" etc)
MRC:
The justification for the assignment of a federal supply class /fsc/ to an item based on the classification of the next higher classifiable assembly.ZZZV
Fsc Application Data:
Communications
