Número de pieza:
mil-s-2418712r5lls0-1c
Unidad de medida:
No qup EA
NSN
Número de acciones nacionales:
TXT
Descripción:

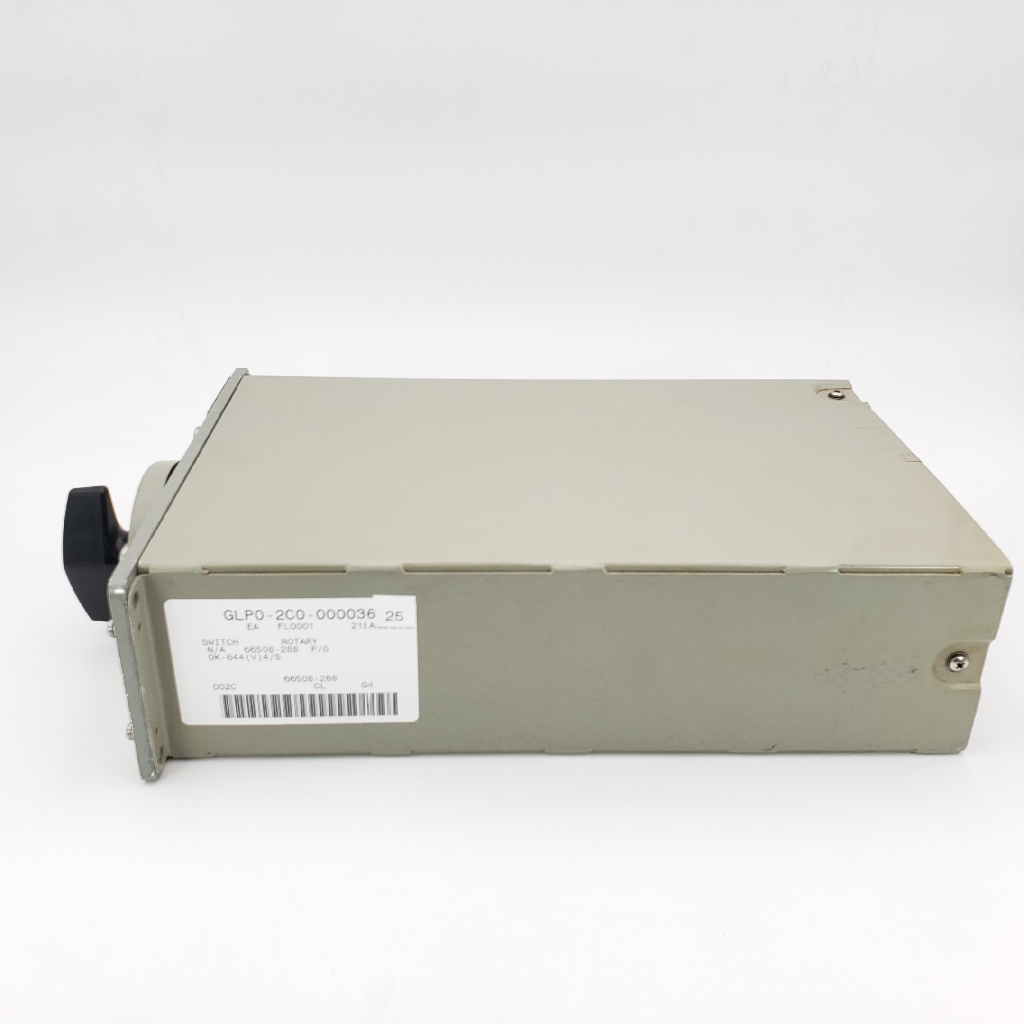

Rotary Switch
Código de nombre del artículo:
02134
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
MK70MOD25, switchboard, digital fire control
MRC:
The number of poles included in the item.AKPX
Pole Quantity:
2 single section front
MRC:
The means of attaching the item.AXGY
Mounting Method:
Threaded hole single mounting facility
MRC:
The position of the actuator,with relation to the extremity of rotation,that is momentary (spring loaded).CQQT
Switch Actuator Momentary Position:
Clockwise single actuator
MRC:
The number of positions to which the switch actuator may be indexed.CRJH
Switch Actuator Indexing Position Quantity:
5 single actuator
MRC:
An indication of the switching action by the contacts of the item.CSHW
Contact Switching Action:
Breaks before makes single section front
MRC:
The increments of angular rotation that the switch actuator moves between adjacent index positions.CSLC
Switch Actuator Positioning Increment:
45.0 degrees single actuator
MRC:
Indicates the type of device included in the switch to limit the angular rotation of its actuator.CTDN
Switch Actuator Stop Device Type:
Adjustable stop single actuator
MRC:
The amount of current that the contacts are rated to make or break with a specified load.CTHF
Contact Load Current Rating:
4.0 amperes resistive load ac at sea level
