Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
mil-r-6855cl2gr601-4thk
NSN
Número de acciones nacionales:
TXT
Descripción:

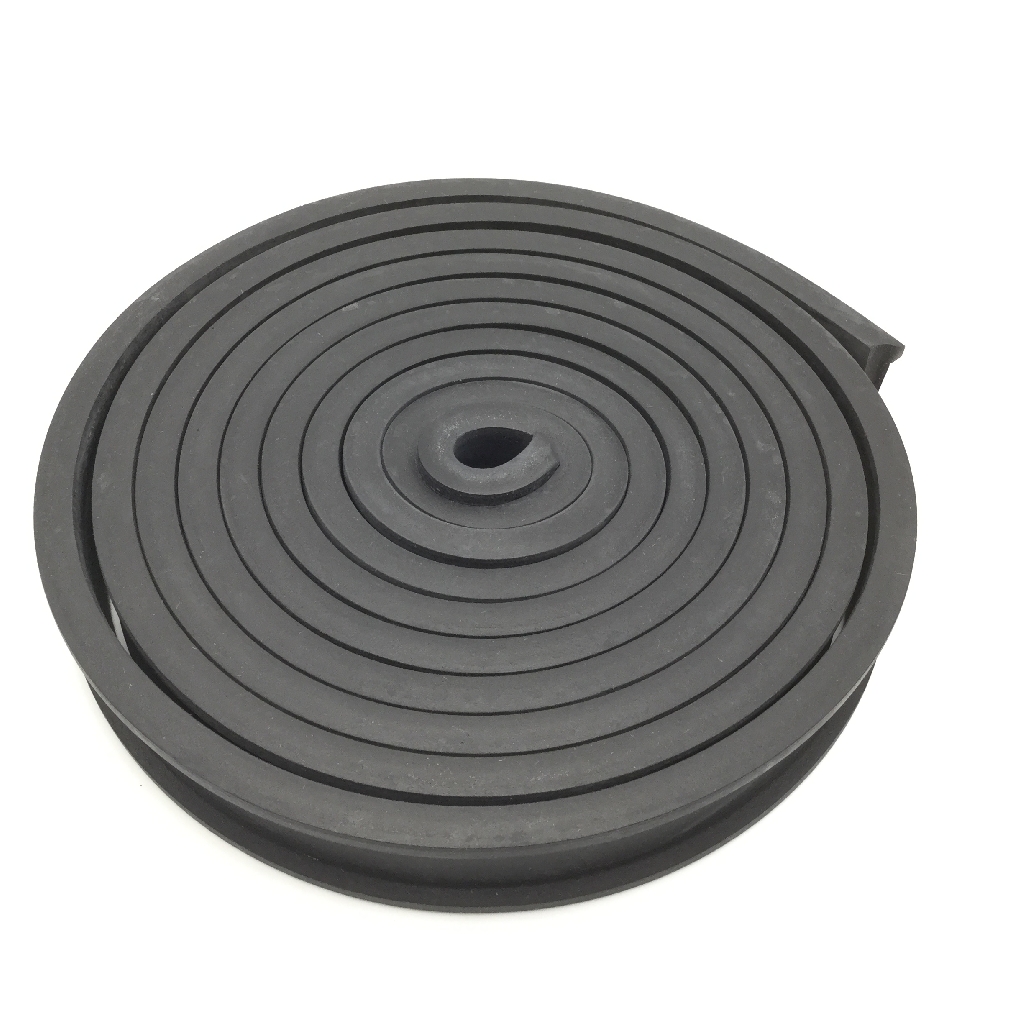

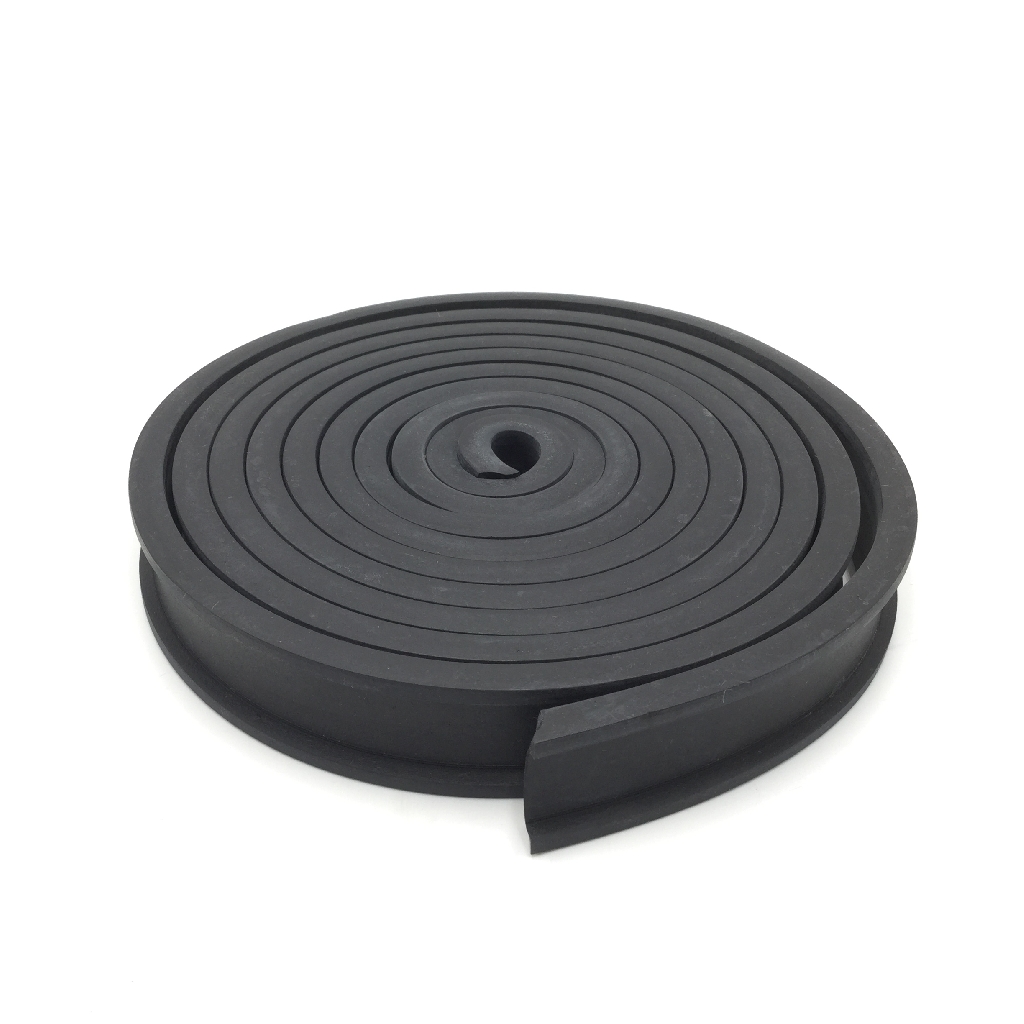

Nonmetallic Channel
Código de nombre del artículo:
30218
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Open channel
MRC:
A numeric value that reflects the hardness of a nonmetallic item when used in conjunction with a hardness rating scale.AASF
Nonmetallic Hardness Rating:
55.0 shore durometer a and 65.0 shore durometer a
MRC:
The maximum load in tension applied in a longitudinal direction,per unit of cross-sectional area,that the material can withstand without rupture.AASH
Min. Tensile Strength (psi):
1500 pounds per square inch
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
0.250 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
0.875 inches
MRC:
A measurement of the longest dimension of any object,in distinction from width.ABRY
Length:
96.000 inches
Right Side Flange Height:
0.125 inches
Left Side Flange Thickness:
0.125 inches
Right Side Flange Thickness:
0.125 inches
MRC:
The environmental elements or conditions that an item is designed or protected to resist or withstand satisfactorily.ADZC
Environmental Protection:
Petroleum and low temperature and ozone resistant and weather resistant
Base Flange Thickness:
0.125 inches
MRC:
The style designation corresponding to the shape of the left-side flange tip.BHQU
Left-side Flange Tip Style:
Left square end
MRC:
The style designation corresponding to the shape of the right-side flange tip.CZLZ
Right-side Flange Tip Style:
Right square end
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Rubber synthetic
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
2 class and 60 grade and a type
