Número de pieza:
m819354-04
Información de la pieza
Right hand thread direction static load 5, 300 lbs fatigue load 1, 500 lbs axial proof load 430 lbs 28 threads-unjf
NSN
Número de acciones nacionales:
TXT
Descripción:

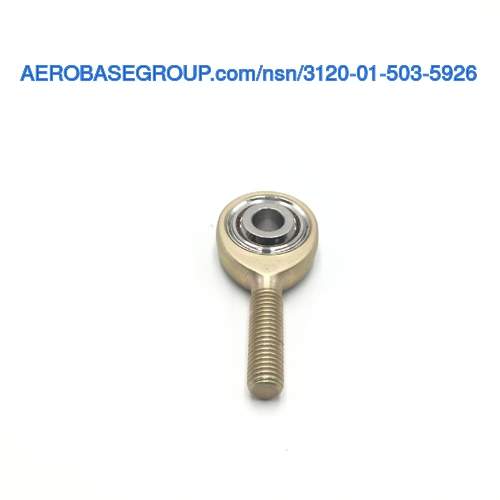

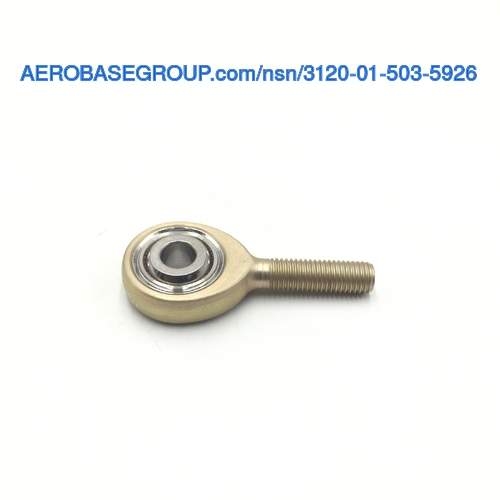

Self-aligning Plain Bearing
Código de nombre del artículo:
13208
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.2495 inches and 0.2500 inches
Outer Member Outside Diameter:
Between 0.8170 inches and 0.8370 inches
Outer Member Width:
Between 0.2550 inches and 0.2650 inches
Inner Member Width:
Between 0.3410 inches and 0.3430 inches
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
28.0 rockwell c race insert and 37.0 rockwell c race insert
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
39.0 rockwell c rod end body and 42.0 rockwell c rod end body
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
55.0 rockwell c inner member and 62.0 rockwell c inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polytetrafluoroethylene race liner
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 440C inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 630 race insert
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp E4340 rod end body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
MIL-S-5000 military specification single material response rod end body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5643 assn standard single material response race insert
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5630 assn standard single material response inner member
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium rod end body and chromate rod end body
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
With insert and/or liner
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81343-AS81935/4 professional/industrial association standard
