Número de pieza M55302139E160Y

Electrical Connector Cable Clamp
Descripción

Clamp cable

Disponibilidad de stock  Códigos de condición del producto

Número de pieza m55302139e160y está en stock en las siguientes cantidades y condiciones.

  • NS: 173
  • NE: 522
  • SV: 1
  • AR: 2

Nota: La disponibilidad de este artículo se actualizó por última vez 01/10/2023 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

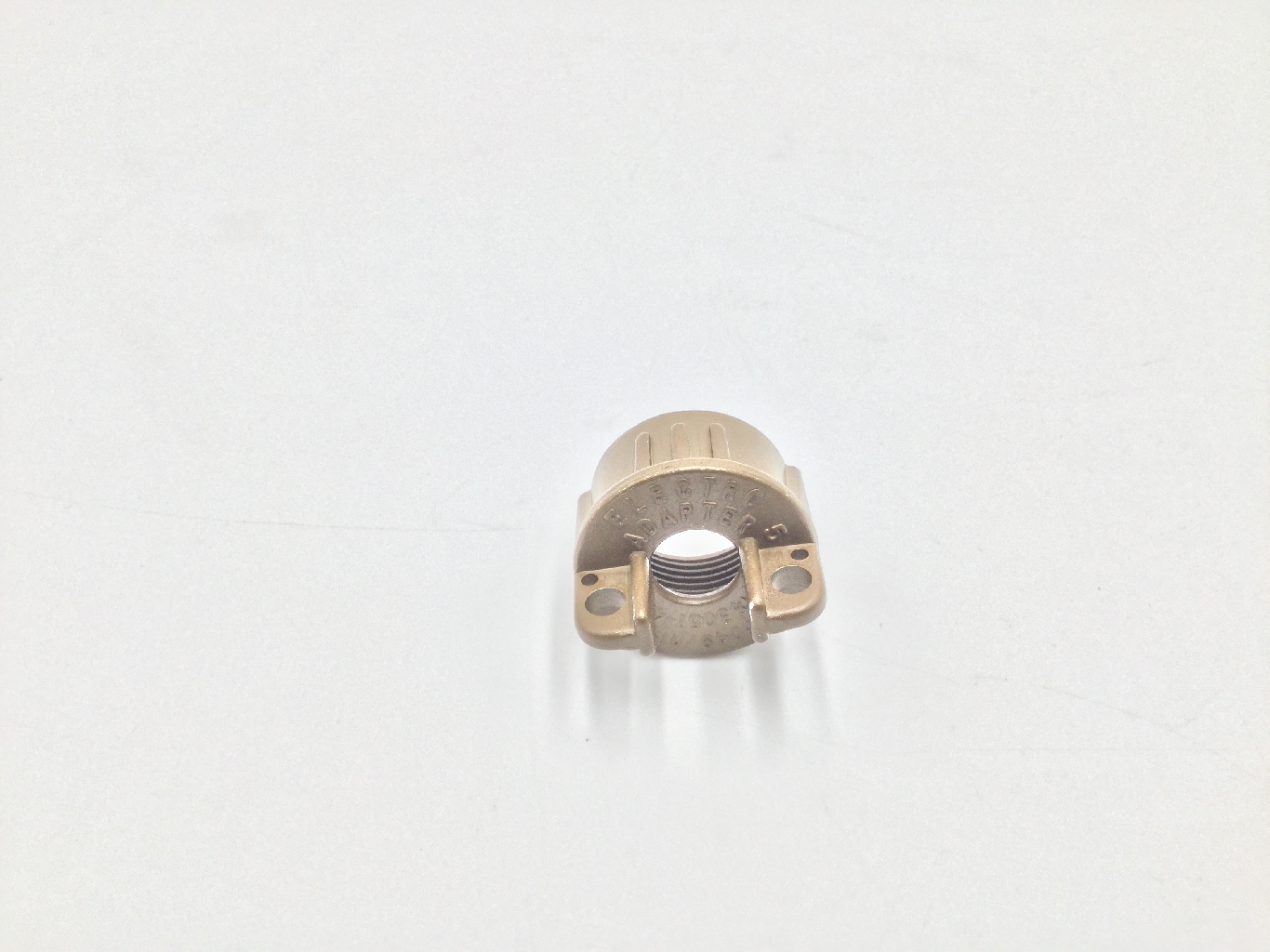

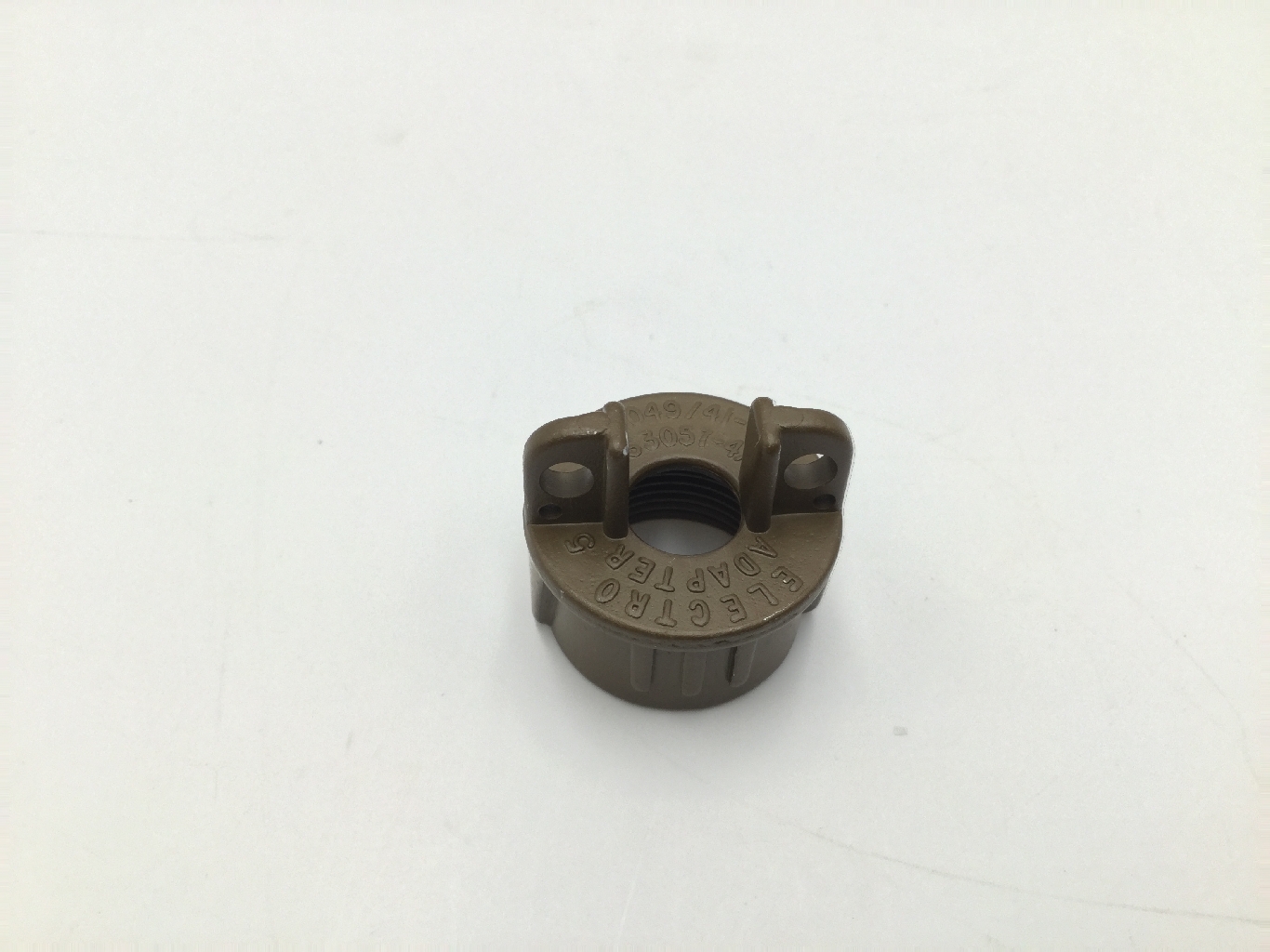

Imágenes

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 5935-01-149-2540 Imagen del número de acciones nacionales 5935-01-149-2540 Imagen del número de acciones nacionales 5935-01-149-2540 Imagen del número de acciones nacionales 5935-01-149-2540

El precio histórico de este producto está entre 4.74 and 6.399 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
m55302139e160y
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
011492540
NSN
Número de acciones nacionales:
5935-01-149-2540 5935011492540
TXT
Descripción:
Electrical Connector Cable Clamp
INC
INC
Código de nombre del artículo:
23010
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2B
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
0.812 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
0.875 inches
MRC:
The length of a straight line which passes through the center of the cable opening,and terminates at the circumference.AGTW
Cable Opening Diameter:
0.312 inches
MRC:
The number of openings designed to accommodate a cable.AKRD
Cable Opening Quantity:
1
MRC:
Indicates the type and number of facilities by which the item is mounted.AXHR
Mounting Facility Type And Quantity:
1 threaded coupling
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
24
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.625 inches
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Aluminum alloy
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and chromate
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Double clamp
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off.plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a surface.SURF
Surface Treatment:
Cadmium and chromate
MRC:
The specification,standard,drawing,or similar instrument that specifies environmental and performance requirements or test conditions under which an item is tested and establishes acceptable limits within which the item must conform identified by an alphabetic and/or numeric reference number. includes the commercial and government entity (cage) code of the entity controlling the instrument.TEST
Test Data Document:
81349-MIL-C-85049 specification (includes engineering type bulletins brochures etc that reflect specification type data in specification format excludes commercial catalogs industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical" "average" "" etc)
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unef
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81349-MIL-C-85049/41 government specification
