Número de pieza M459383-6CL

Clinch Self-locking Nut
Descripción

Nut

Disponibilidad de stock  Códigos de condición del producto

Número de pieza m459383-6cl está en stock en las siguientes cantidades y condiciones.

  • NS: 1095
  • NE: 1148
  • AR: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 07/24/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

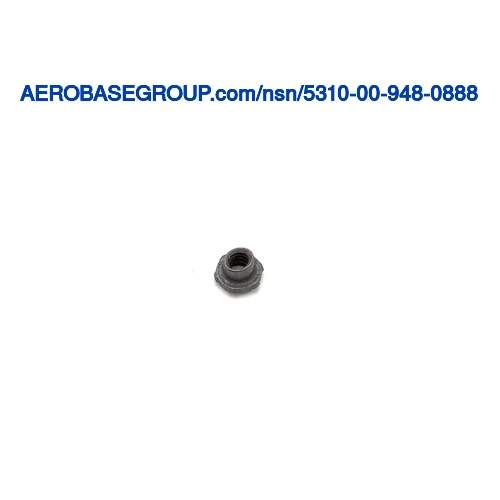

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 5310-00-948-0888

El precio histórico de este producto está entre 3.18 and 4.293 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
m459383-6cl
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
009480888
NSN
Número de acciones nacionales:
5310-00-948-0888 5310009480888
TXT
Descripción:
Clinch Self-locking Nut
INC
INC
Código de nombre del artículo:
15892
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3B
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque all metal design
MRC:
The length of a straight line which passes through the center of that portion used to guide the item and terminates at the circumference.AAVL
Pilot Diameter:
Between 0.182 inches and 0.188 inches
MRC:
The length of the pilot,which is the unthreaded portion beyond the thread used to guide the item.AAVM
Pilot Length:
0.037 inches
MRC:
The length of a straight line which passes through the center of a counterbored portion of a hole,and terminates at the circumference.AAWY
Counterbore Diameter:
0.138 inches nut
MRC:
A substance designed to provide a reduction of friction between the two surfaces in contact.ABAJ
Lubrication:
Dry film lubricant
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Clinch
MRC:
None.ACTD
Nut Diameter:
Between 0.235 inches and 0.265 inches
MRC:
None.ADEA
Nut Height:
0.178 inches
MRC:
The measurement of the enlarged portion adjacent to the threaded portion of a nut,in distinction from height.ADFK
Nut Counterbore Depth:
0.035 inches nut
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unc
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
32
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.138 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5732 assn standard single material response or ams 5736 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
