Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
m1637727-001
NSN
Número de acciones nacionales:
TXT
Descripción:

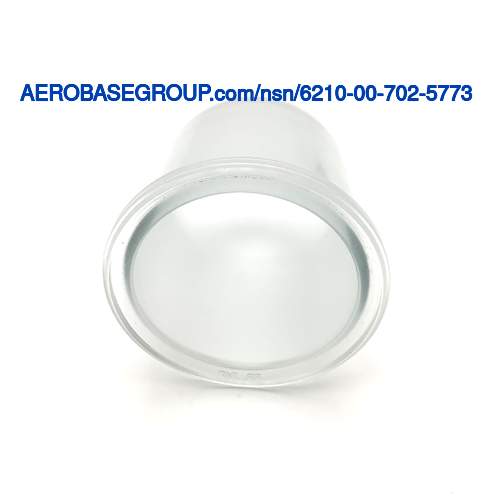

Electric Light Globe
Código de nombre del artículo:
11119
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
Between 4.718 inches and 5.031 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
Between 4.469 inches and 4.531 inches
MRC:
The means of attaching the item.ADJH
Mounting Method:
Flange
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
0.625 inches
MRC:
The ability of the material to transmit light and allow visual perception.AJQE
Material Transparency:
Clear
MRC:
An indication as to whether or not high stress glass has been included.ARBL
High Stress Glass:
Included
MRC:
The condition of the item with respect to the texture of the outer surface.ARBM
Outer Surface Condition:
Smooth
MRC:
The condition of the item with respect to the texture of the inner surface.AWJL
Inside Surface Condition:
Diffusing pattern
MRC:
A characteristic of light that can be specified in terms of luminance,dominant wavelength,and purity.HUES
Color:
White
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Glass
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Glass
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Cone round end
MRC:
The technical differentiating characteristic/s/ of an item of supply which depart/s/ from the text of a specification or a standard in that it represents a selection of characteristics stated in the specification or standard as being optional,or a variation from one or more of the stated characteristics,or an additional characteristic not stated in the specification or standard.ZZZW
Departure From Cited Document:
MIL-F-16377, paragraph 3.7.5, lenses globes roundelsand windows
