Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
m118310-55n7
NSN
Número de acciones nacionales:
TXT
Descripción:

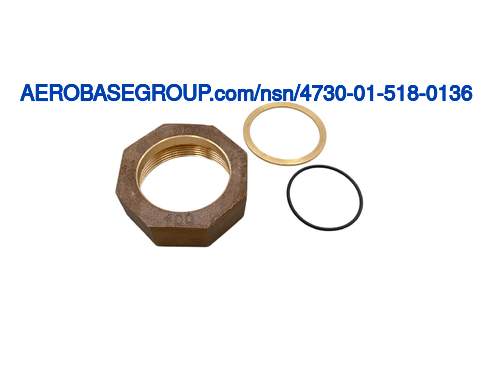

Union Nut
Código de nombre del artículo:
19964
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2B
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
Shoulder Width:
0.200 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Hexagon
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
3.047 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
Between 150.0 degrees fahrenheit and 425.0 degrees fahrenheit
MRC:
The smallest length of a straight line which passes through the center of the two surfaces of a circular item,and terminates at the inside circumference.BSPX
Smallest Inside Diameter:
2.220 inches
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Uns
Shoulder Step Width:
0.205 inches
Shoulder Seat Diameter:
Between 2.488 inches and 2.499 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
10
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
2.595 inches
MRC:
The maximum rated working pressure the item can withstand without rupture,and the service for which designed.CRPK
Maximum Working Pressure Rating And Service For Which Designed:
200.0 pounds per square inch steam and 400.0 pounds per square inch oil and 400.0 pounds per square inch air and 400.0 pounds per square inch water
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy
MRC:
The specification,standard,drawing,or similar instrument that specifies environmental and performance requirements or test conditions under which an item is tested and establishes acceptable limits within which the item must conform identified by an alphabetic and/or numeric reference number. includes the commercial and government entity (cage) code of the entity controlling the instrument.TEST
Test Data Document:
81349-MIL-F-1183 specification (includes engineering type bulletins brochures etc that reflect specification type data in specification format excludes commercial catalogs industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical" "average" "" etc)
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81349-MIL-F-1183/10 government specification
