Número de pieza LM311CH

Linear Microcircuit
Descripción

Ic's

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

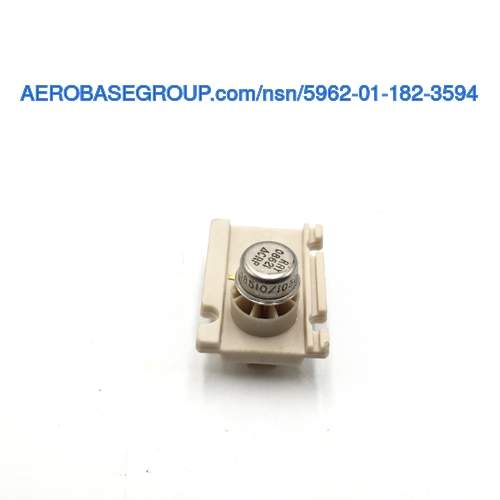

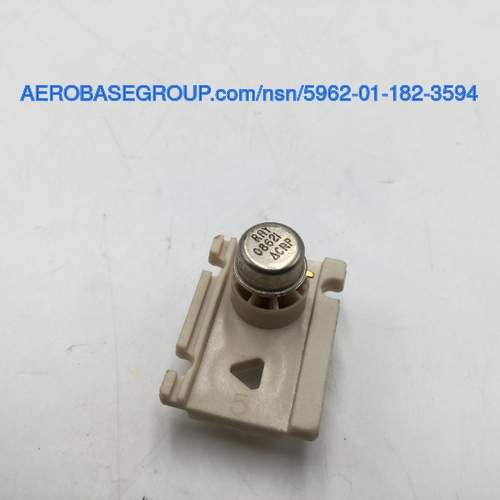

Imagen del número de acciones nacionales 5962-01-182-3594 Imagen del número de acciones nacionales 5962-01-182-3594 Imagen del número de acciones nacionales 5962-01-182-3594

El precio histórico de este producto está entre 35.04 and 47.304 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
lm311ch
Desmilitarización:
Yes - DEMIL/MLI
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
011823594
NSN
Número de acciones nacionales:
5962-01-182-3594 5962011823594
TXT
Descripción:
Linear Microcircuit
INC
INC
Código de nombre del artículo:
31778
INC
COM
Conformidad:
* ITAR Controlled
MRC:
The length of a straight line which passes through the center of the body,and terminates at the outside circumference.ADAR
Body Outside Diameter:
Between 0.335 inches and 0.370 inches
MRC:
A measurement from the bottom to the top of the body,in distinction from depth.ADAU
Body Height:
Between 0.165 inches and 0.185 inches
MRC:
The maximum amount of electrical energy that can be expended by an item.AEHX
Maximum Power Dissipation Rating:
330.0 milliwatts
MRC:
The minimum and maximum limits of temperature at which the item is rated for operation.AFGA
Operating Tempurature Range:
-55.0/+125.0 degrees celsius
MRC:
The minimum and maximum temperatures at which an item can be stored without detrimental effect.AFJQ
Storage Tempurature Range:
-65.0/+150.0 degrees celsius
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Hermetically sealed and monolithic and negative outputs and positive outputs
MRC:
The chemical compound or mechanical mixture properties of which the inclosure is fabricated.CQSJ
Inclosure Material:
Metal
MRC:
Indicates the physical configuration of the inclosure.CQSZ
Inclosure Configuration:
Can
MRC:
The arrangement or pattern which describes the input circuitry of the item.CQZP
Input Circuit Pattern:
2 input
MRC:
The basic purpose and number of functions of the device,modified by its intended use.CSSL
Design Function And Quantity:
1 comparator voltage
MRC:
The alpha-numeric designation,assigned by the controlling agency,by which the outline of the case is identified.CTFT
Case Outline Source And Designator:
A-1 MIL-M-38510
MRC:
The level of electrical flow and the symbol used to identify the specific electrical characteristic.CTQX
Current Rating Per Characteristic:
50.00 milliamperes forward current peak total value not applicable
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated. the treatment is designed to protect the terminal surface(s) and cannot be wiped off.CWSG
Terminal Surface Treatment:
Solder
MRC:
The value of the voltage applied and type of specific electrical characteristic for which the item is designed.CZEN
Voltage Rating And Type Per Characteristic:
30.0 volts power source
MRC:
An indication of the nuclear hardness criticality of the item.NHCF
Nuclear Hardness Critical Feature:
Hardened
MRC:
The specification,standard,drawing,or similar instrument that specifies environmental and performance requirements or test conditions under which an item is tested and establishes acceptable limits within which the item must conform identified by an alphabetic and/or numeric reference number. includes the commercial and government entity (cage) code of the entity controlling the instrument.TEST
Test Data Document:
81349-MIL-M-38510 specification (includes engineering type bulletins brochures etc that reflect specification type data in specification format excludes commercial catalogs industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical" "average" "" etc)
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
8 pin
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81349-MIL-M-38510/103 government specification
