Información de la pieza
280 pct full of MIL-G-81322, internal radial clearance 0.0004-0.0010 in heat treat rings and balls to rockwell c 60 to 66 and stabilized for operation at 250 degrees f and radial and lateral eccentricity inner ring 0.0010 in Outer ring 0.0016 in
NSN
Número de acciones nacionales:
TXT
Descripción:

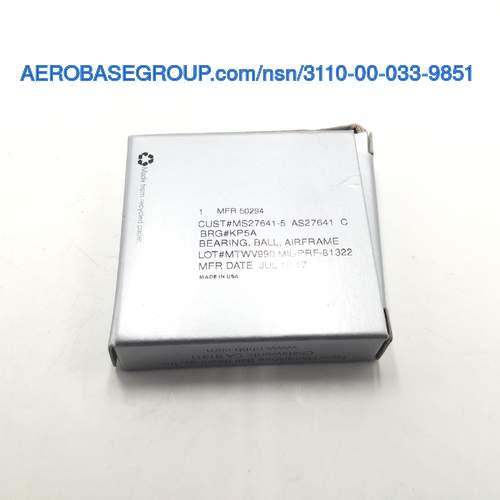

Airframe Ball Bearing
Código de nombre del artículo:
00041
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
0.3125 inches
MRC:
The overall length of a straight line which passes through the center of an item,and terminates at the outside circumference.ADGA
Overall Outside Diameter:
0.8125 inches
MRC:
The element,compound,or mixture with which the item is lubricated.ADZG
Lubrication Material:
Grease
Outer Ring Width:
0.2340 inches
Inner Ring Width:
0.2970 inches
MRC:
The number of seals included on the item.AGYJ
Seal Quantity:
2
MRC:
Indicates the type of seal provided with the bearing.AGYW
Bearing Seal Type:
Contact
MRC:
The direction of load with respect to the shaft axis.AGZC
Load Direction:
Radial
MRC:
The standard tolerance designation indicating the manufactured limitations of the item as established by the various specifications and standards.CTFZ
Standard Tolerance Designation:
Afbma standard tolerance for airframe ball bearings
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the lubrication material.LMDC
Lubrication Material Specification:
MIL-G-81322 military specification single material response
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polytetrafluoroethylene seal
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp E51100 ball or steel comp E52100 ball
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp E52100 inner ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp E52100 outer ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel retainer
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
66 federal standard all material responses ball
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
66 federal standard single material response inner ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
66 federal standard single material response outer ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 3652 assn standard single material response seal or ams 3666 assn standard single material response seal
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium exposed surfaces as mounted
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 1, cl 2 federal specification single treatment response exposed surfaces as mounted
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Single row inner ring extended both sides
