Número de pieza HT0-3

Weapon System Resilient Mount
Disponibilidad de stock  Códigos de condición del producto

Número de pieza ht0-3 está en stock en las siguientes cantidades y condiciones.

  • NS: 76
  • AR: 1
  • NE: 51

Nota: La disponibilidad de este artículo se actualizó por última vez 06/18/2024 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

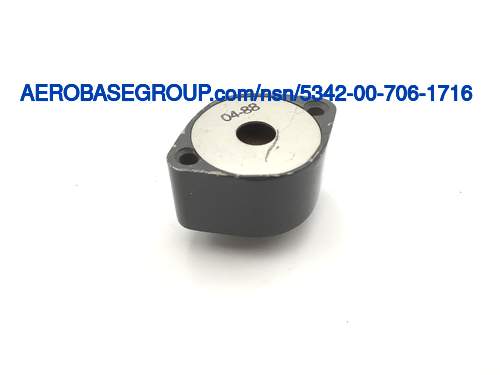

Imagen del número de acciones nacionales 5342-00-706-1716

El precio histórico de este producto está entre 143.54 and 193.779 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
ht0-3
Desmilitarización:
No
Vigencia:
120 mo.
Unidad de medida:
1 EA
NIIN:
007061716

Información de la pieza
Weapon system essential one 0.600 in diameter hole drilled in shank to hold inner member during instalation

NSN
Número de acciones nacionales:
5342-00-706-1716 5342007061716
TXT
Descripción:
Weapon System Resilient Mount
INC
INC
Código de nombre del artículo:
53589
MRC:
Designates the thread diameter and number of threads per specific measurement scale.ABUJ
Thread Size:
0.164-32 all threaded portions
MRC:
The distance between the centerline of the mounting holes.AFQM
Distance Between Mounting Hole Centers:
Between 1.402 inches and 1.410 inches
MRC:
A measurement of the longest dimension of a flange,in distinction from width.AFQN
Flange Length:
1.810 inches
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
1.330 inches
MRC:
A measurement of the longest dimension of the stud,in distinction from width.AGXF
Stud Length:
0.323 inches all threaded stud
MRC:
The maximum rated load the item is designed to accommodate.AYXK
Maximum Load Rating:
3.0 pounds
MRC:
None.BXCQ
Flange Mounting Hole Diameter:
Between 0.169 inches and 0.174 inches
MRC:
The rated load the item is designed to accommodate at a specified frequency range.BXCW
Load/frequency Range:
Not rated
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Feat
MRC:
A measurement from the bottom to the top of an object,in distinction from depth.HGTH
Height:
0.797 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy holder
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum washer
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize holder
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize washer
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Phosphate inner member
