Número de pieza HCMHJLQRAABB

Extractor Post Fuseholder
Disponibilidad de stock  Códigos de condición del producto

Número de pieza hcmhjlqraabb está en stock en las siguientes cantidades y condiciones.

  • NS: 235
  • NE: 127
  • OH: 1
  • SV: 1
  • AR: 2

Nota: La disponibilidad de este artículo se actualizó por última vez 08/31/2021 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

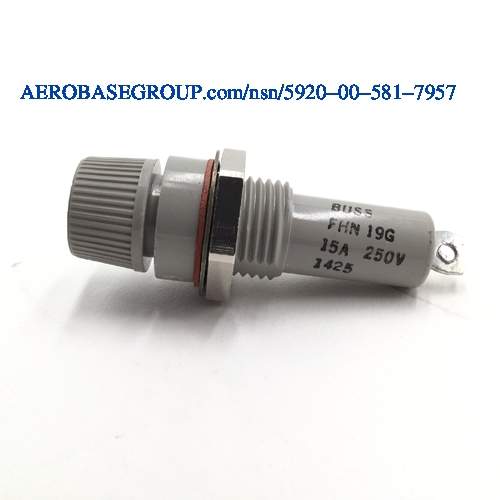

Imagen del número de acciones nacionales 5920-00-581-7957

El precio histórico de este producto está entre 48.86 and 65.961 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
hcmhjlqraabb
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
5 EA
NIIN:
005817957
NSN
Número de acciones nacionales:
5920-00-581-7957 5920005817957
TXT
Descripción:
Extractor Post Fuseholder
INC
INC
Código de nombre del artículo:
28909
MRC:
The basic material of which the body is fabricated.AAFZ
Body Material:
Plastic diallyl phthalate MIL-M-14, type sdg
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Bushing mounted type
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off. plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a terminal surface.ABDN
Terminal Surface Treatment:
Solder dip and tin plated
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
2.450 inches
MRC:
The length of a straight line which passes through the center of a bushing,and terminates at the circumference.ABKH
Bushing Diameter:
0.625 inches
MRC:
The number of mounting holes provided.ABTJ
Mounting Hole Quantity:
1
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
Between 0.790 inches and 0.830 inches
MRC:
The environmental elements or conditions that an item is designed or protected to resist or withstand satisfactorily.ADZC
Environmental Protection:
Dripproof
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the mounting hole(s).AEVB
Mounting Hole Style:
Bushing mounting
MRC:
The element,compound,or mixture of which the contact/s/ is fabricated,excluding any surface treatment.AFRG
Contact Material:
Any acceptable
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off. plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects the contact surface.AFRH
Contact Surface Treatment:
Silver plated QQ-S-365
MRC:
The number of fuses the item is designed to accommodate /including spares/.AGUE
Fuse Accommodation Quantity:
1
MRC:
A measurement of the longest dimension of a fuse the item can accommodate.AGUJ
Accommodated Fuse Length:
1.250 inches
MRC:
The length of a straight line which passes through the center of the accommodated ferrule,and terminates at the circumference.AGUK
Accommodated Ferrule Diameter:
0.281 inches
MRC:
None.AGUT
Length From Front Protrusion To Mounting Surface:
Between 0.640 inches and 0.680 inches
MRC:
None.AGUU
Bushing Thread Length:
Between 0.480 inches and 0.520 inches
MRC:
The length of a straight line which passes through the center of the cap,and terminates at the circumference.AGUV
Cap Diameter:
Between 0.670 inches and 0.710 inches
MRC:
The length of a straight line which passes through the center of a bushing hole,and terminates at the circumference.AGVF
Bushing Hole Diameter:
Between 0.625 inches and 0.635 inches
MRC:
None.AGVH
Flatted Side Bushing Hole Length:
Between 0.570 inches and 0.575 inches
MRC:
The amount of electrical current the item is designed to carry,expressed in amperes.CQJL
Current Carrying Rating In Amps:
15.0
MRC:
Indicates the type of fuse terminations which the item will accommodate.CSNM
Fuse Terminal Type Accommodated:
Ferrule
MRC:
The total electrical voltage.ELEC
Voltage In Volts:
250.0
MRC:
The specification,standard,drawing,or similar instrument that specifies environmental and performance requirements or test conditions under which an item is tested and establishes acceptable limits within which the item must conform identified by an alphabetic and/or numeric reference number. includes the commercial and government entity (cage) code of the entity controlling the instrument.TEST
Test Data Document:
81349-MIL-F-19207/10 specification (includes engineering type bulletins brochures etc that reflect specification type data in specification format excludes commercial catalogs industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical" "average" "" etc)
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
2 tab solder lug
