Número de pieza:
h11958te08
Información de la pieza
Polytetrafluoroethylene coated black swaged end distance 0.410 in Min 0.435 in Maximum into bore and external wire corrosion resistant steel
NSN
Número de acciones nacionales:
TXT
Descripción:

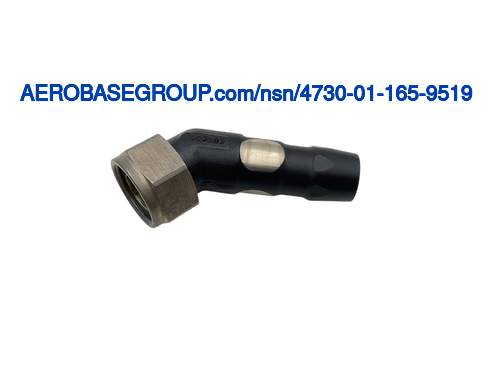

Tube Elbow
Código de nombre del artículo:
03771
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3B 1ST end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Swaged w/ grooves (tube) 2ND end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Swivel nut flare (tube) style 3 optional end 1ST end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
1.812 inches 2ND end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
0.760 inches 1ST end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded internal tube 1ST end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Unthreaded internal tube 2ND end
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
20 1ST end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.719 inches 1ST end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
37.0 degrees 1ST end
MRC:
The angle that the flow is turned from the straight flow.CRFY
Flow Angle:
45.0 degrees
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
0.500 inches all ends
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 4921 assn standard single material response body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 4965, 6AL-4V assn standard single material response nut
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjs 1ST end
