Número de pieza:
er1804d080606
NSN
Número de acciones nacionales:
TXT
Descripción:

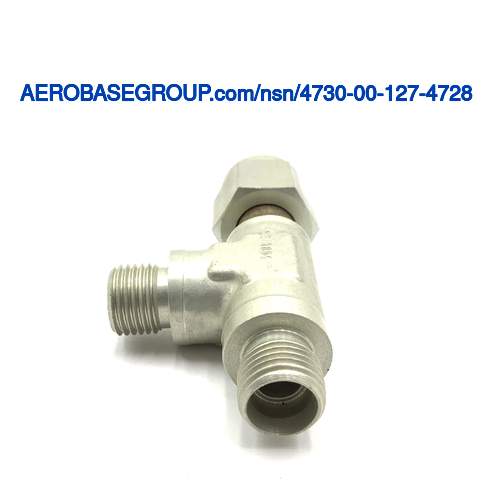

Tube Tee
Código de nombre del artículo:
03809
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3A 2ND end
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3A 3RD end
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3B 1ST end
MRC:
The maximum temperature at which the item is rated to operate for an extended period of time.AEHZ
Maximum Operating Temp:
135.0 degrees fahrenheit single response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Flareless (tube) 3RD end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Flareless (tube) 2ND end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Swivel nut flareless (swivel nut attachment method optional) (tube) 1ST end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
1.086 inches 2ND end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
1.086 inches 3RD end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
1.711 inches 1ST end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external tube 2ND end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external tube 3RD end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded internal tube 1ST end
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
3000.0 pounds per square inch single response
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.562 inches 2ND end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.562 inches 3RD end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.750 inches 1ST end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
12.0 degrees 1ST end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
12.0 degrees 2ND end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
12.0 degrees 3RD end
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
0.375 inches 2ND end
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
0.375 inches 3RD end
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
0.500 inches 1ST end
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 2014
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-A-367, T6 federal specification single material response
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Aeronautical fluid single response
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf 2ND end
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf 3RD end
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf 1ST end
