Número de pieza:
dnh1052-1
NSN
Número de acciones nacionales:
TXT
Descripción:

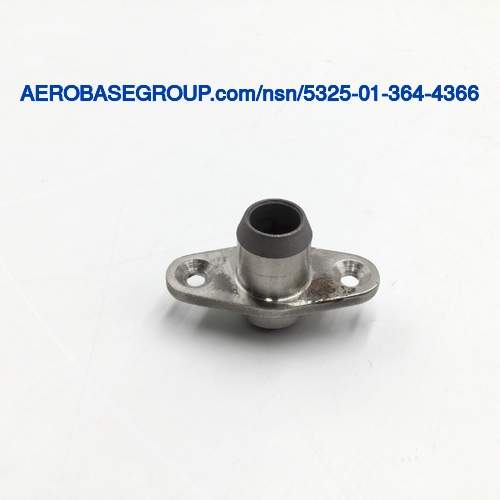

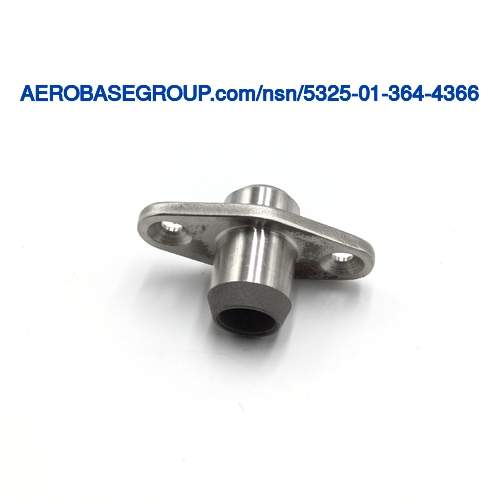

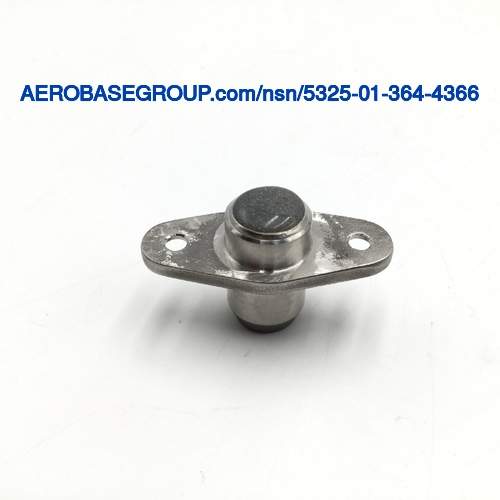

Turnlock Fastener Receptacle
Código de nombre del artículo:
18485
MRC:
The included angle of the countersink,expressed in degrees.AATA
Countersink Angle In Deg:
100.0
MRC:
The center to center distance between mounting holes.ABTH
Center To Center Distance Between Mounting Holes:
1.350 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the mounting.ADER
Mounting Style:
Countersunk
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the turnlock receptacle.AGRY
Turnlock Receptacle Style:
Two lug floating
Receptaclelength:
1.880 inches
Receptacle Height:
0.750 inches
MRC:
A measurement of the longest dimension of the stud that extends above the base of the item.AHDH
Stud Protrusion Length:
0.313 inches
Turnlock Mounting Hole Diameter:
Between 0.161 inches and 0.167 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel ejector springsteel comp 8740 studsteel comp 304 housing
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
AMS5673 assn standard single material response ejector SPRINGAMS6322 assn standard single material response STUDQQ-S-763 federal specification single material response housing
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate ejector springcadmium stud and chromate studpassivate housing
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-35 federal specification single treatment response ejector SPRINGQQ-P-416, type 2, cl 2 federal specification single treatment response STUDQQ-P-35 federal specification single treatment response housing
