Número de pieza:
d559t-4d-115
NSN
Número de acciones nacionales:
TXT
Descripción:

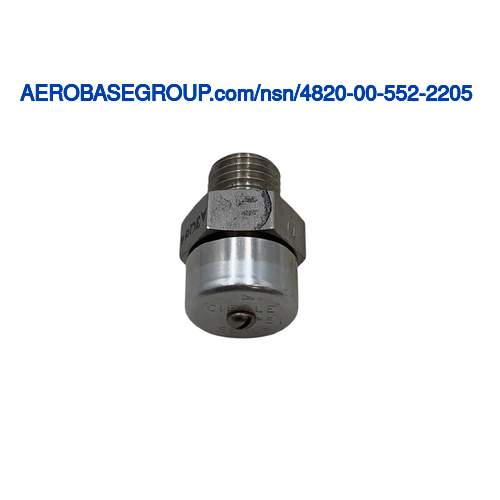

Safety Relief Valve
Código de nombre del artículo:
05488
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3A 1ST end
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand 1ST end
MRC:
The part that controls the flow through the item.ADQU
Flow Control Device:
Poppet
MRC:
The means of closing the item when inlet pressure decreases.ADSU
Disk Loading Method:
Spring
MRC:
The maximum temperature at which the item is rated to operate for an extended period of time.AEHZ
Maximum Operating Temp:
280.0 degrees fahrenheit single response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
G46A plain (tube) 1ST end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Plain (tube) 1ST end
MRC:
The means used to control the operation of the valve.AQLR
Valve Operation Method:
Automatic
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external tube 1ST end
MRC:
The minimum to maximum pressures at which the item may be set to open.CQCY
Adjustable Pressure Range:
+60.0/+150.0 pounds per square inch
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
200.0 pounds per square inch single response
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.437 inches 1ST end
MRC:
The predetermined pressure at which the item is calibrated to open.CSDC
Opening Pressure Setting:
115.0 pounds per square inch
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
0.250 inches 1ST end
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Rubber butadiene-acrylonitrile class nbr flow control device
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 303 body
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 303 seat
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Fed STD66, aisi 303/SAE 30303 federal standard single material response body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Fed STD66, aisi 303/SAE 30303 federal standard single material response seat
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Acetylene 2ND response
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Air 1ST response
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Ammonia gaseous 3RD response
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Fuel/oil hydrocarbon 4TH response
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Helium 5TH response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
ERR-090
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Straight through w/baffle
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf 1ST end
MRC:
The name and number of those parts furnished with the item of supply that have not been specified elsewhere.TMQY
Furnished Items And Quantity:
1 deflector cap
