Número de pieza:
d47-b15a-05w3-100
Información de la pieza

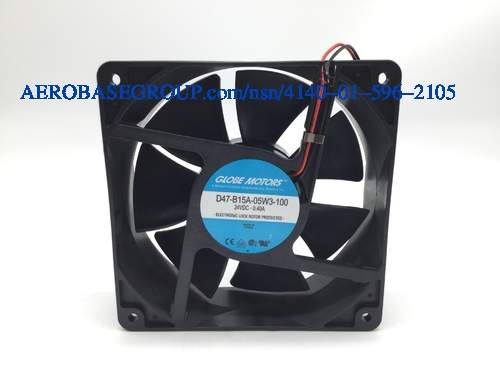

Tubeaxial cooling fans model no D47T15
NSN
Número de acciones nacionales:
TXT
Descripción:
Tubeaxial Fan
Código de nombre del artículo:
04244
MRC:
A measurement taken at right angles to the length of an item,in distinction from thickness.ABGL
Width:
4.69 inches
MRC:
A measurement of the longest dimension of any object,in distinction from width.ABRY
Length:
1.50 inches
MRC:
The direction in which the fluid is passed through the item.ADNK
Flow Direction:
Outward
MRC:
Indicates the type of drive for turning,rotating,or positioning the mechanism.AKCV
Drive Type:
Direct
MRC:
Indicates the type and number of facilities by which the item is mounted.AXHR
Mounting Facility Type And Quantity:
4 bolt
MRC:
The direction of rotation for which the item is designed.AYSY
Rotation Direction For Which Designed:
Counterclockwise
MRC:
The rated capacity of air flow moved through the item.CQKX
Air Flow Rate:
97.0 cubic feet per minute
Housing Inside Diameter:
4.13 inches
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Frame: reinforced polybutylene plastic (UL94V-0 flame retardant) Impeller: reinformed polybutylene plastic (UL94V-S rating) Bearings: precision life-lubricated ball bearings Insulation: class a integral ground system rated@ 248 degrees f (120 c) Weight: 9.2OZ (260 grams) Operating temperature ra nge: 14 degress to 158 degrees f (-10 to 70 c) Insulation resistance: 10 megohms minumum @ 500 vdc Dielectric strength: 500 vac for 60 seconds Safety protection: electronic locked rotor protected polarity protected Life expectancy: 75, 000 hours @ 77 degree f (25C). Terminals: 2 solder terminals: centers: .312 inches thickness: .02 inches Width: .120 inches Length: .31INCHES. Red lead is positive (+) black lead is negative (-) white leade is tachometer/snesor.
MRC:
A measurement from the bottom to the top of an object,in distinction from depth.HGTH
Height:
4.69 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
45 fixed
