Número de pieza:
d3899924wb2sn
NSN
Número de acciones nacionales:
TXT
Descripción:

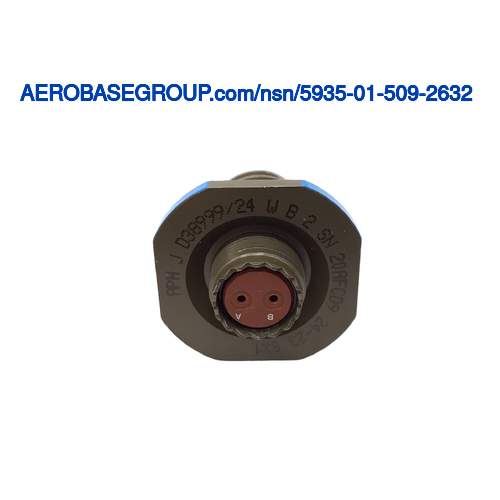

Electrical Receptacle Connector
Código de nombre del artículo:
15093
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Straight shape external coupling
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.280 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
1.374 inches
Distance From Mounting Shoulder To Front Face:
0.890 inches
Mounting Facility Thickness:
0.062 inches
MRC:
The number of mating ends provided with the item which are designed to accommodate another connector.AFQW
Mating End Quantity:
1
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the contact position/s/.AFQX
Contact Position Arrangement Style:
24-2 single mating end
MRC:
Indicates the location of the terminal/s/ on the item.CQTM
Terminal Location:
Back single mating end single contact grouping
MRC:
Indicates the type of terminal for providing electrical connection to the item.CSCF
Terminal Type:
Crimp single mating end single contact grouping
MRC:
The number of contacts included with the item which provides electrical connection.CXCG
Included Contact Quantity:
100 single mating end single contact grouping
MRC:
Identification of the precious material contained in the item.PRMT
Precious Material:
Gold
