Número de pieza:
d3899924sa98sc
Información de la pieza

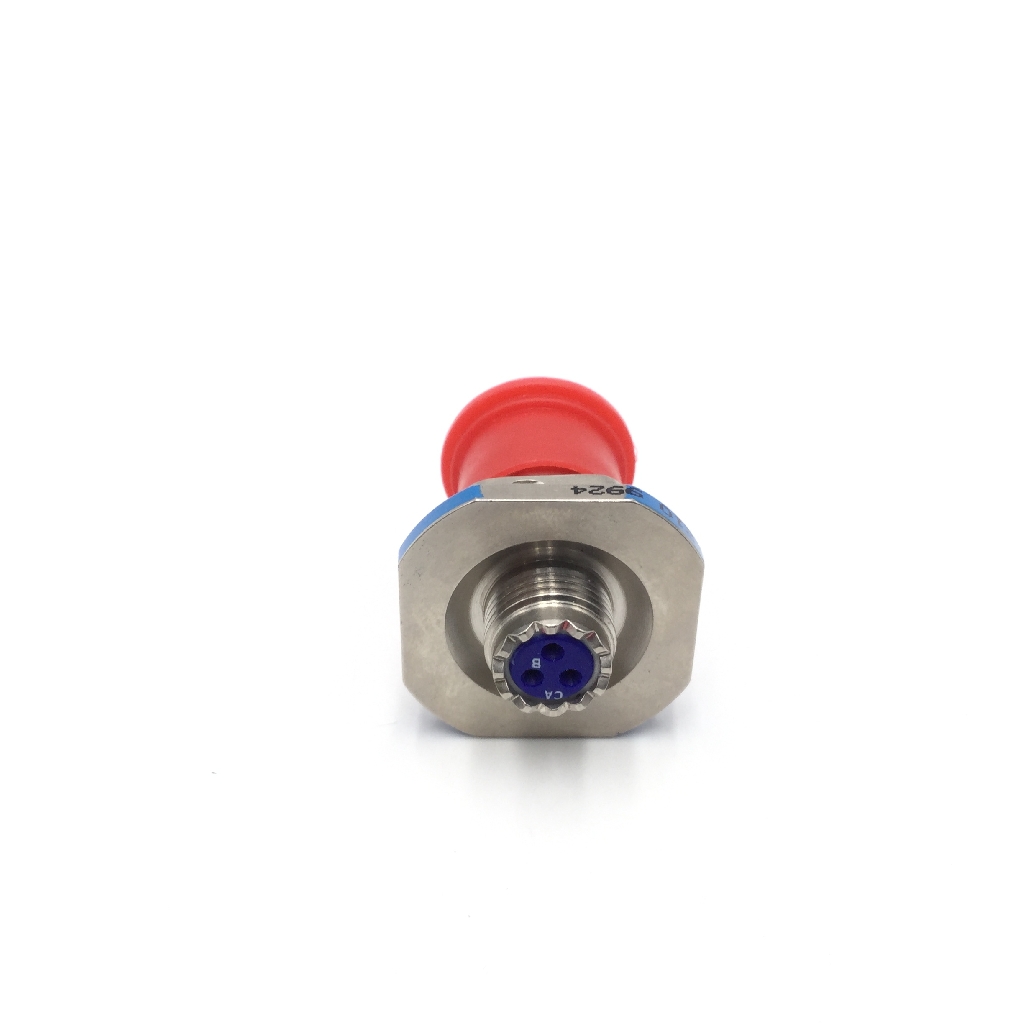

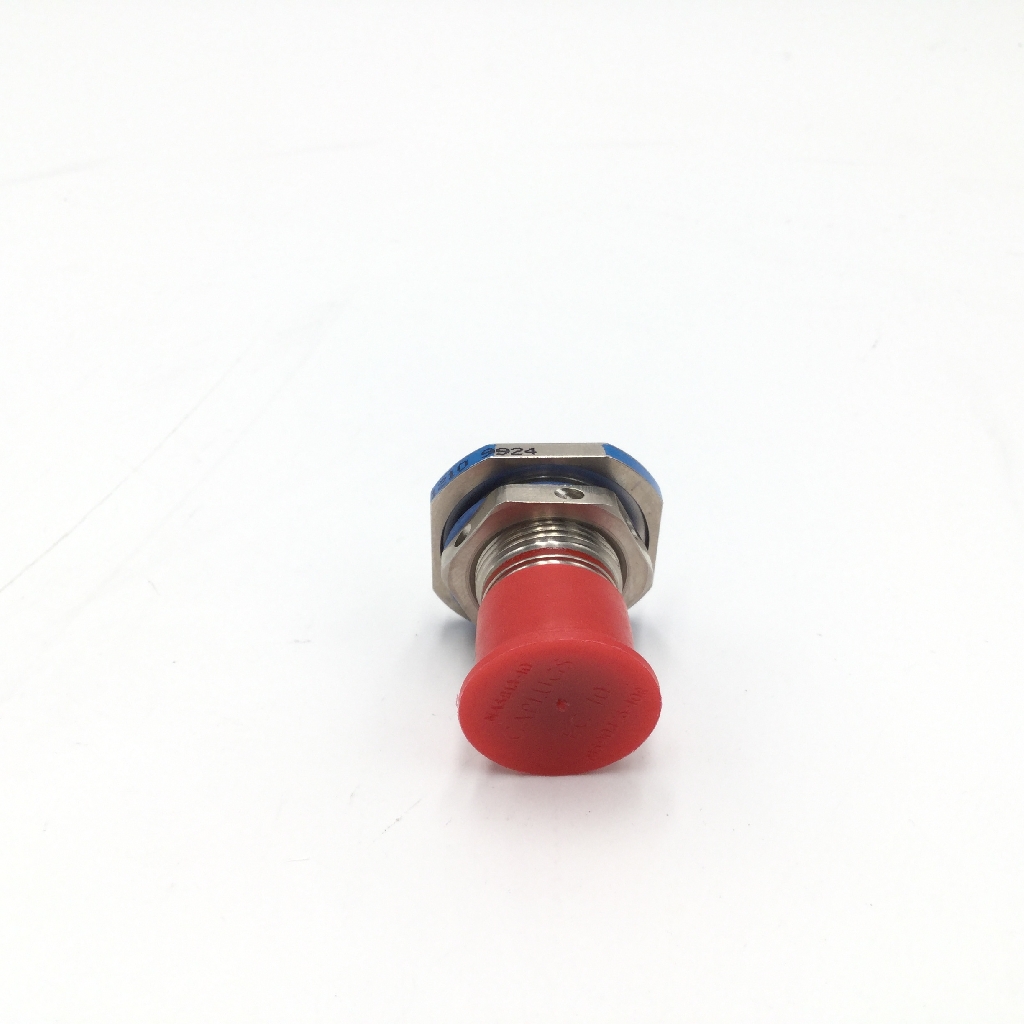

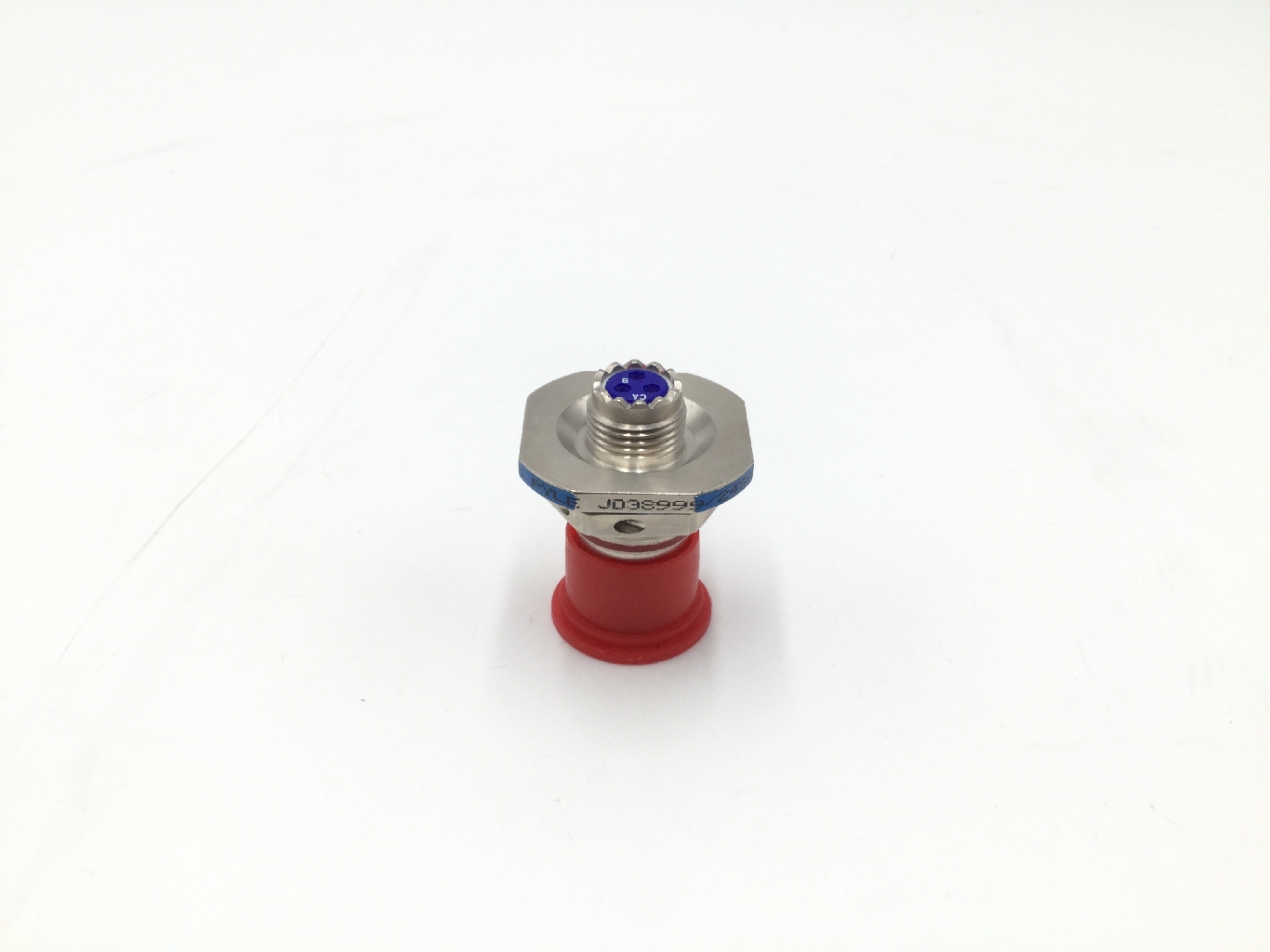

Connector receptacle electrical
NSN
Número de acciones nacionales:
TXT
Descripción:
Electrical Receptacle Connector
Código de nombre del artículo:
15093
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Straight shape external coupling
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
12.7 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
15.9 inches
Distance From Mounting Shoulder To Front Face:
2.0 inches
Mounting Facility Thickness:
3.2 inches
MRC:
The number of mating ends provided with the item which are designed to accommodate another connector.AFQW
Mating End Quantity:
3
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the contact position/s/.AFQX
Contact Position Arrangement Style:
2 rows of contacts non-inserted board 3RD mating end
MRC:
Indicates the location of the terminal/s/ on the item.CQTM
Terminal Location:
Back single mating end single contact grouping
MRC:
Indicates the type of terminal for providing electrical connection to the item.CSCF
Terminal Type:
Pin single mating end single contact grouping
MRC:
The number of contacts included with the item which provides electrical connection.CXCG
Included Contact Quantity:
90 single mating end single contact grouping
MRC:
Indicates the type of contact(s) included with the item.CXCL
Included Contact Type:
Round pin single mating end single contact grouping
