Número de pieza D11055ATE16

Tube Elbow
Disponibilidad de stock  Códigos de condición del producto

Número de pieza d11055ate16 está en stock en las siguientes cantidades y condiciones.

  • NS: 1
  • NE: 10

Nota: La disponibilidad de este artículo se actualizó por última vez 09/13/2024 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

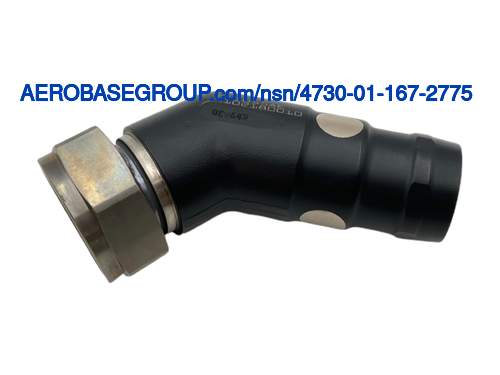

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales  4730-01-167-2775

El precio histórico de este producto está entre 1055.44 and 1424.844 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
d11055ate16
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
011672775
NSN
Número de acciones nacionales:
4730-01-167-2775 4730011672775
TXT
Descripción:
Tube Elbow
INC
INC
Código de nombre del artículo:
03771
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3B 1ST end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Swaged w/ grooves (tube) 2ND end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Swivel nut inverted flare (tube) 1ST end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
1.838 inches 1ST end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
2.460 inches 2ND end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded internal tube 1ST end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Unthreaded internal tube 2ND end
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
14 1ST end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
1.250 inches 1ST end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
37.0 degrees 1ST end
MRC:
The angle that the flow is turned from the straight flow.CRFY
Flow Angle:
45.0 degrees
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
1.000 inches all ends
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium alloy nut
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium body
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjs 1ST end
