Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
crm-15-500
Desmilitarización:
Yes - DEMIL/MLI
NSN
Número de acciones nacionales:
TXT
Descripción:

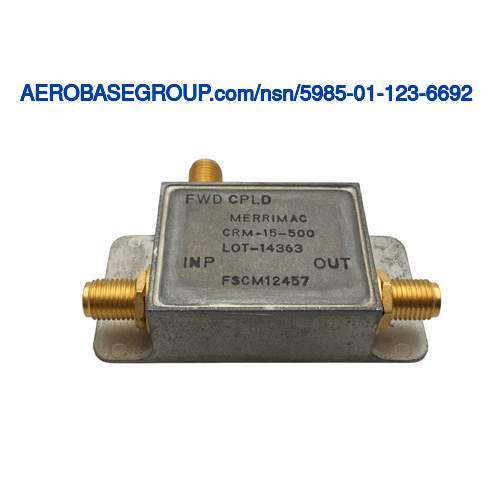

Directional Coupler
Código de nombre del artículo:
00384
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
2.000 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
0.560 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
1.400 inches
MRC:
The number of complete cycle changes of radiated electromagnetic energy,per unit of time,for which an item is rated.ANKZ
Radio Frequency Rating:
Between 10.0 megahertz and 500.0 megahertz
MRC:
Indicates the design type of the item.APGF
Design Type:
Bidirectional
MRC:
Indicates the type of unit.APQB
Unit Type:
Transmission line
MRC:
The measured weight of an item unencumbered by packaging or packing material.AWJN
Unpackaged Unit Weight:
0.900 ounces
MRC:
The maximum to minimum voltage standing wave ratio at a specified frequency/ies/.BGPS
Voltage Standing Wave Ratio At Reference Frequency:
1.2 to 1 at 10 to 500 mhz
MRC:
The amount of decrease in power,expressed in decibels.BGPX
Power Loss In Decibels:
15.0
MRC:
The nomenclature by which the terminal fitting is identified.BGPY
Terminal Fitting Name:
Sma female coupling
MRC:
An indication of the designed use of the terminal fitting.BGQC
Terminal Fitting Usage Design:
Main line and secondary line
MRC:
The justification for the assignment of a federal supply class /fsc/ to an item based on the classification of the next higher classifiable assembly.ZZZV
Fsc Application Data:
Antennas waveguides and related equipment
