Información de la pieza

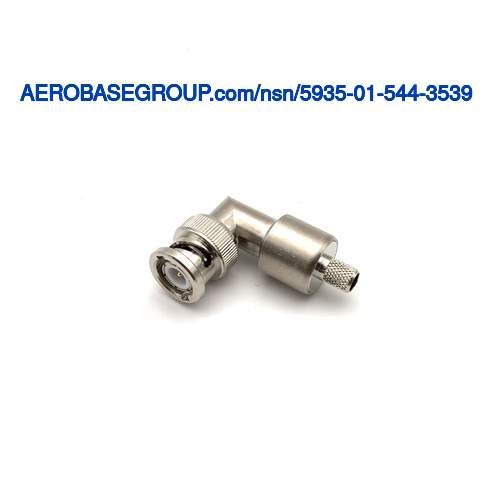

Bnc right angle plug
NSN
Número de acciones nacionales:
TXT
Descripción:
Electrical Plug Connector
Código de nombre del artículo:
01938
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Angle shape internal coupling
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.520 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
1.520 inches
MRC:
The number of mating ends provided with the item which are designed to accommodate another connector.AFQW
Mating End Quantity:
1
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
For ecs cable 311601, 311501, 421601
MRC:
The temperature at which the item operates.AWTN
Operating Tempurature Rating:
Between -65.0 degrees celsius and 165.0 degrees celsius
MRC:
The chemical compound or mechanical mixture properties of which the shell is fabricated.CSPT
Shell Material:
Copper alloy
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
1 solder or crimp inner contact 1 ferrule crimp outer contact impedane 50 ohms 0-4GHZ frequency range vswr 1.2: 1 max Dc to 2 ghz 1DB max Dc to 2GHZ insertion loss 500 vrms sea level working voltage 1500 vrms at sea level dielectric withstanding; 5000 megohms min At 500 volts dc insulation resistance
