Número de pieza AS954

Box Wrench
Descripción

Type 2: box wrench, class 3: deep offset, style b: short length. These double head, thin wall, high strength box wrenches come in a 12 point design. As954.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

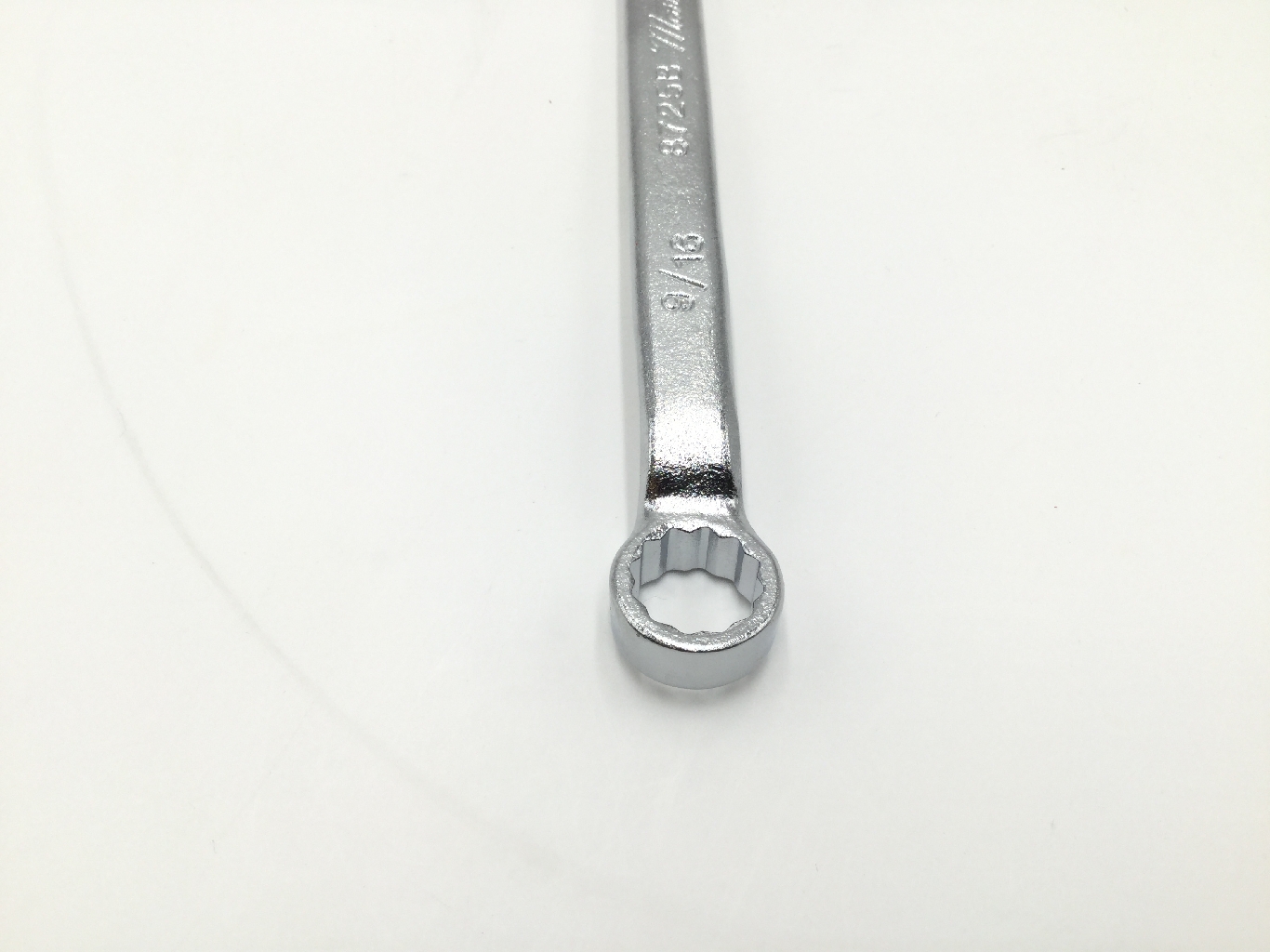

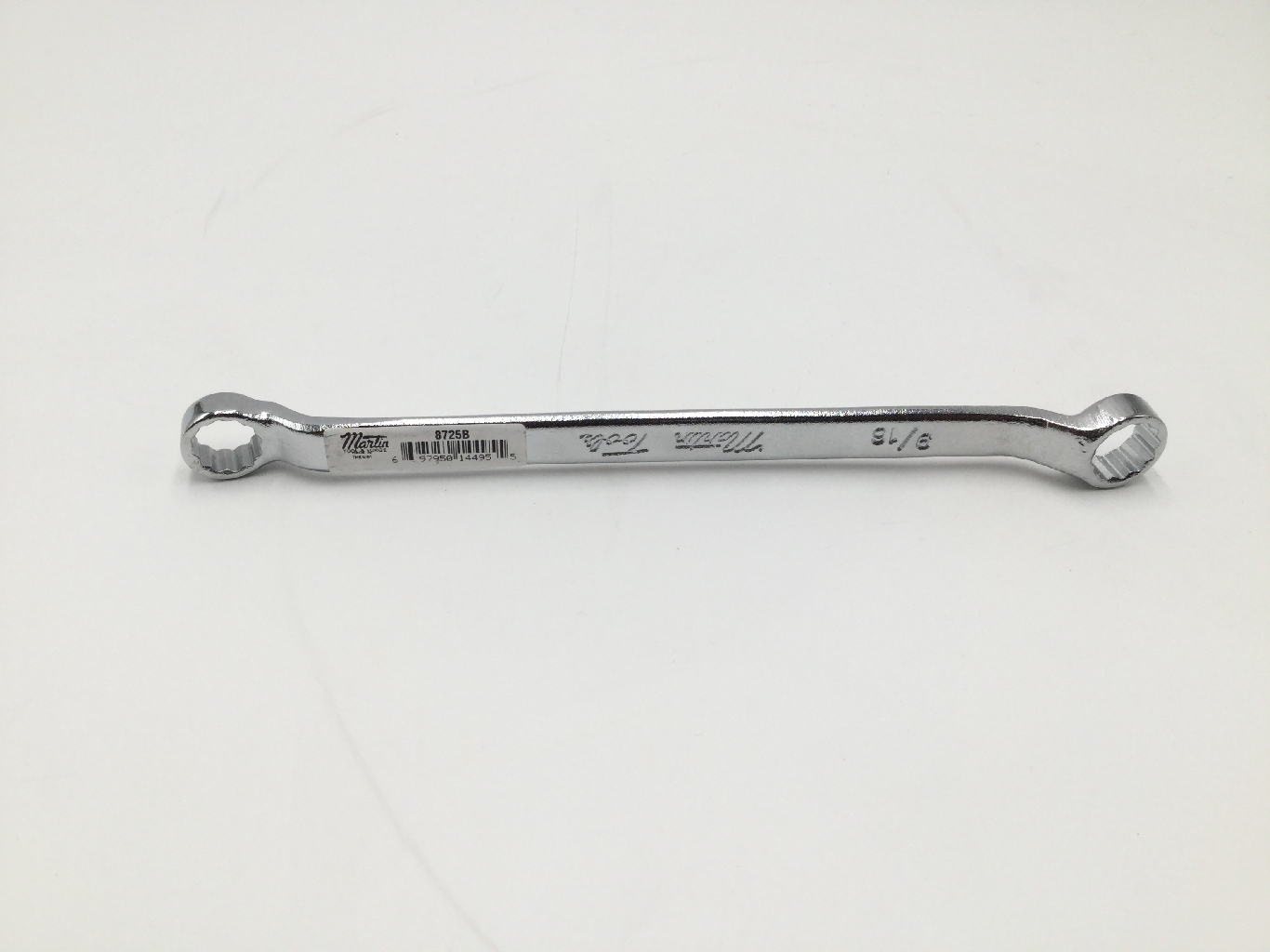

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 5120-00-224-3154 Imagen del número de acciones nacionales 5120-00-224-3154 Imagen del número de acciones nacionales 5120-00-224-3154

El precio histórico de este producto está entre 38.28 and 51.678 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
as954
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
6 EA
NIIN:
002243154

Información de la pieza
Forged steel

NSN
Número de acciones nacionales:
5120-00-224-3154 5120002243154
TXT
Descripción:
Box Wrench
INC
INC
Código de nombre del artículo:
03555
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 5.000 inches and 6.000 inches
MRC:
The length of a straight line which passes through the center of the large end,and terminates at the outside circumference.AHMG
Large End Outside Diameter:
0.906 inches
MRC:
The length of a straight line which passes through the center of the small end,and terminates at the outside circumference.AHMH
Small End Outside Diameter:
0.781 inches
MRC:
None.AJAU
Large End Head Thickness:
0.375 inches
MRC:
None.AJAV
Small End Head Thickness:
0.359 inches
MRC:
Designates the size of the wrenching surface.AJBR
Wrenching Surface Size:
0.500 inches first end
MRC:
Designates the size of the wrenching surface.AJBR
Wrenching Surface Size:
0.562 inches second end
MRC:
The geometric configuration of the wrenching surface of the item.CRWY
Wrenching Surface Shape:
12 point both ends internal
MRC:
None.CSPX
Wrenching End Offset Angle:
Between 40.0 degrees and 65.0 degrees
MRC:
Indicates the type of product that meets or exceeds the government guidelines for environmentally preferred characteristics.ENAC
Environmental Attribute Code:
Plastics removal in the marine environment (prime) product
MRC:
Markings included on an item for the purpose of offering instructions or warnings or to indicate the purpose,function,or application of the item.excludes manufacturers part numbers,symbols,or the like.MARK
Special Markings:
Wrench size
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Chromium
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
42 deep angular offset double head
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Deep angular offset double head
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81343-SAE AS954 professional/industrial association standard
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
2 type and 3 class and b style
