Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Información de la pieza
Used on grumman A10 aircraft
NSN
Número de acciones nacionales:
TXT
Descripción:

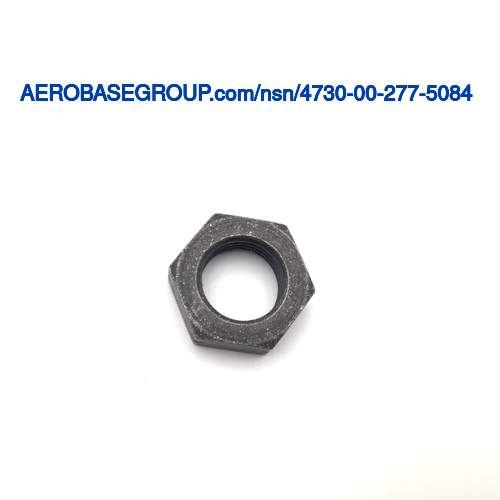

Tube Fitting Locknut
Código de nombre del artículo:
17645
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3B
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Tube fitting locknut
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
2350-01-031-8851
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
0.812 inches
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unf
MRC:
The length of a straight line which passes through the center of the packing recess,and terminates at the circumference.CFPT
Packing Recess Diameter:
0.733 inches
MRC:
A measurement between specified points on the packing recess,in distinction from height.CFPW
Packing Recess Depth:
0.042 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
18
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.562 inches
MRC:
The nominal length of a straight line which passes through the center of a tube,and terminates at the outside circumference.CQRJ
Tube Outside Diameter:
0.375 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1141
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
11-S-637, comp 1141 federal specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 2, class 2 federal specification single treatment response
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
88044-AN6289 government standard
